CEEG 10-Inch Integrated Online Monitoring Receiver - Large Screen Display for Real-Time Transformer and Switchgear Status
Certification
CE
CNAS
ISO
KEMA
TUV
UL
Home  >  Products  >  Transformer Monitoring System  >  CEEG 10-Inch Integrated Online Monitoring Receiver Device

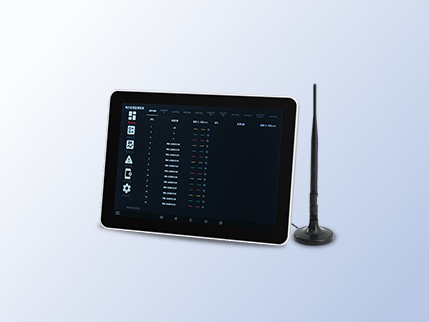

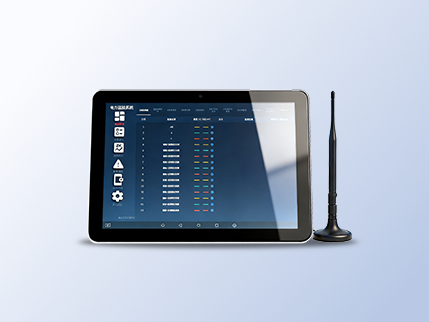

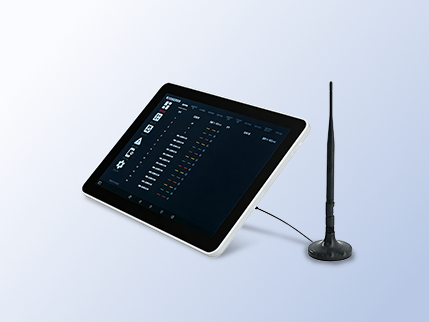

CEEG 10-Inch Integrated Online Monitoring Receiver Device
This device serves as the on-site monitoring host of a wireless temperature monitoring system. It receives and displays data from multiple wireless temperature sensors and simultaneously transmits the information to a centralized monitoring platform. It enables both local visualization and remote centralized monitoring, and is specifically designed for identifying and eliminating hotspot risks in power and industrial equipment.
Consult Now Consult Now 1899-414-7812
CEEG 10-Inch Integrated Online Monitoring Receiver - Large Screen Display for Real-Time Transformer and Switchgear Status
CEEG 10-Inch Integrated Online Monitoring Receiver - Large Screen Display for Real-Time Transformer and Switchgear Status
CEEG 10-Inch Integrated Online Monitoring Receiver - Large Screen Display for Real-Time Transformer and Switchgear Status
CEEG 10-Inch Integrated Online Monitoring Receiver - Large Screen Display for Real-Time Transformer and Switchgear Status
CEEG 10-Inch Integrated Online Monitoring Receiver - Large Screen Display for Real-Time Transformer and Switchgear Status
CEEG 10-Inch Integrated Online Monitoring Receiver - Large Screen Display for Real-Time Transformer and Switchgear Status
prev
next
Scope of application

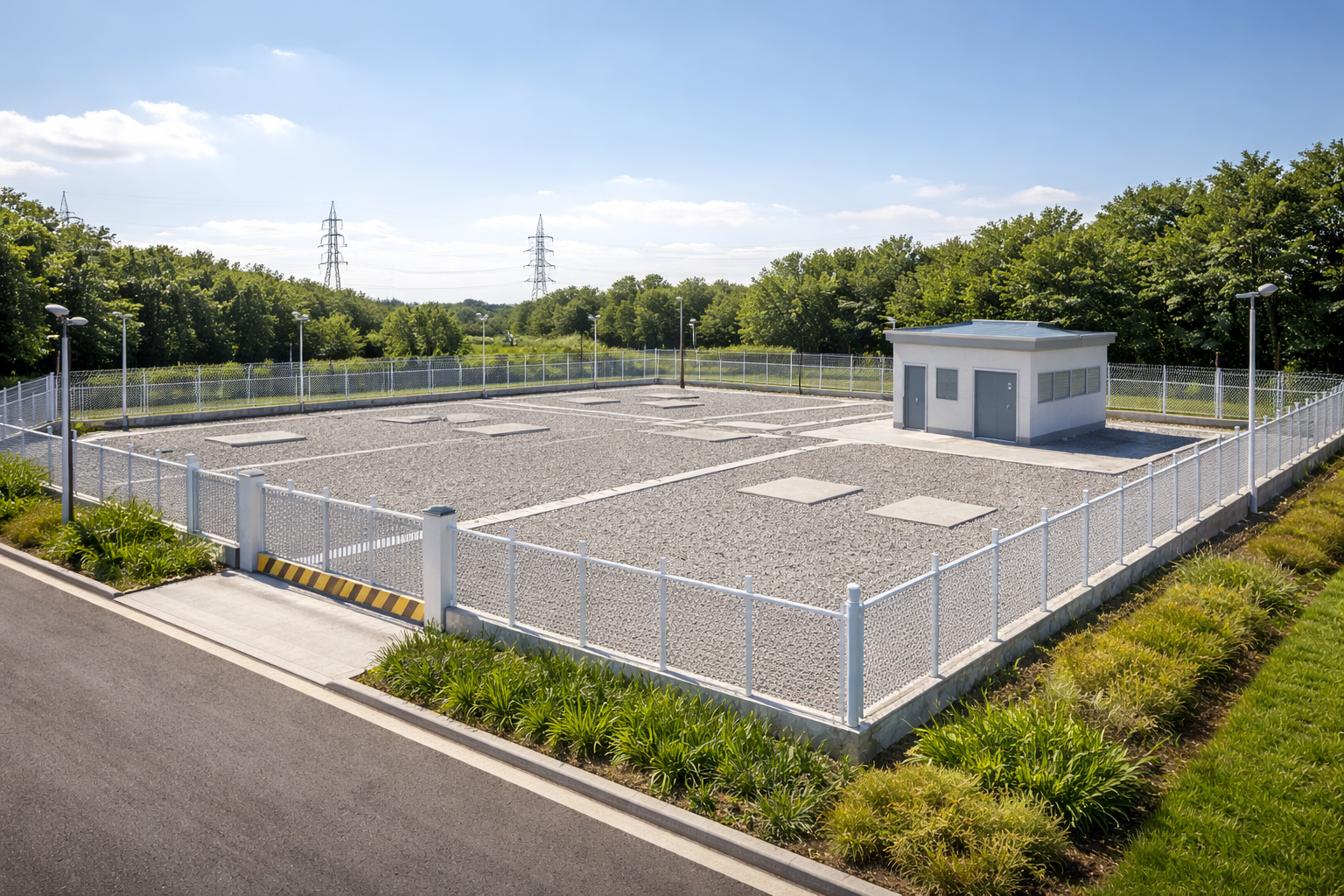

Substation Data Aggregation
Centralized collection and display of temperature monitoring data from substations and switching stations, enabling unified data management and visibility.
Substation Data Aggregation
On-Site Visualization
Real-time local monitoring for compact substations and ring main units (RMUs), supporting fast identification and troubleshooting of potential safety hazards.
On-Site Visualization
Industrial Applications
Temperature monitoring and hotspot inspection for factory power distribution rooms and industrial equipment, with seamless integration to remote central monitoring systems.
Industrial Applications
Product Description
Product Description
1 High-Definition Touchscreen: 10-inch touchscreen with a clear interface and intuitive operation, enabling real-time viewing and easy configuration.
CEEG 10-Inch Integrated Online Monitoring Receiver Device
2 Multiple Data Input Options: Supports RS485, Modbus, Ethernet and other standard interfaces, ensuring compatibility with mainstream monitoring devices.
CEEG 10-Inch Integrated Online Monitoring Receiver Device
3 Flexible Configuration & Alarm Functions: User-defined threshold settings with automatic audible and visual alarms when limits are exceeded, enabling timely response.
CEEG 10-Inch Integrated Online Monitoring Receiver Device
4 Real-Time Data Monitoring: Displays real-time collected data and supports historical records and trend curve analysis for performance evaluation and diagnostics.
CEEG 10-Inch Integrated Online Monitoring Receiver Device
Product Features
CEEG 10-Inch Integrated Online Monitoring Receiver Device

Multi-Function Integration

  • Smart Device Integration: Supports seamless connection with other smart devices to enable unified control.
  • Remote Control & Automated Regulation: Automatically adjusts settings to improve overall system efficiency.
  • Improved System Efficiency: Combines device linkage and automation to optimize real-time energy management.
CEEG 10-Inch Integrated Online Monitoring Receiver Device

Stable and Reliable Performance

  • High-quality hardware design ensures long-term stable operation even in harsh environmental conditions.
CEEG 10-Inch Integrated Online Monitoring Receiver Device

Easy Installation

  • Modular design simplifies on-site installation and reduces system integration complexity.
CEEG 10-Inch Integrated Online Monitoring Receiver Device

Advanced Network Capability

  • Supports remote access and cloud-based data storage, ensuring data security and convenient remote management.
CEEG 10-Inch Integrated Online Monitoring Receiver Device

Visual Interface

  • 10-Inch Central LCD Screen: Displays temperature curves and alarm information for clear and intuitive system status visibility.
  • Intuitive Status Visibility: Provides real-time data tracking and centralized alarm alerts on a high-resolution display.
  • Centralized Data Display: Combines temperature curves and critical alerts on a single 10-inch screen to simplify operations.
CEEG 10-Inch Integrated Online Monitoring Receiver Device

Local Data Storage

  • Local Storage & Data Export: Supports historical data logging and exporting to enable seamless traceability analysis.
  • Traceability & Record Management: Simplifies maintenance tracking and historical audits with secure local data storage.
  • Efficient Data Management: Enables local backup and easy export of records for smarter maintenance planning.
Main Parameters
Display 10-inch high-definition touchscreen
Data Input Interfaces RS485, Modbus, Ethernet, analog inputs
Operating Voltage DC 12V / 24V
Operating Temperature -10°C to 50°C
Operating Humidity 10% RH to 90% RH
Implementation Standard
Implementation Standard
GB/T 28046-2011 Road Vehicles / Industrial Automation Systems and Integration Safety Requirements
IEC 60255 Measuring Relays and Protection Equipment Performance Standards
ISO 9001 Quality Management System Certification
RoHS Restriction of Hazardous Substances Compliance Standard
Technical Advantages
High-Definition Touch Operation
High-Definition Touch Operation
Equipped with a 10-inch high-definition touchscreen, the system delivers a smooth user experience with real-time data visualization, enabling intuitive and fast parameter configuration and operation.
Strong Compatibility
Strong Compatibility
Supports multiple input interfaces and communication protocols, ensuring seamless compatibility with various monitoring devices and enabling easy integration and data transmission across different systems.
Flexible Alarm System
Flexible Alarm System
Users can define customized alarm thresholds, with real-time alarm functionality to ensure timely response and help prevent potential equipment failures.
