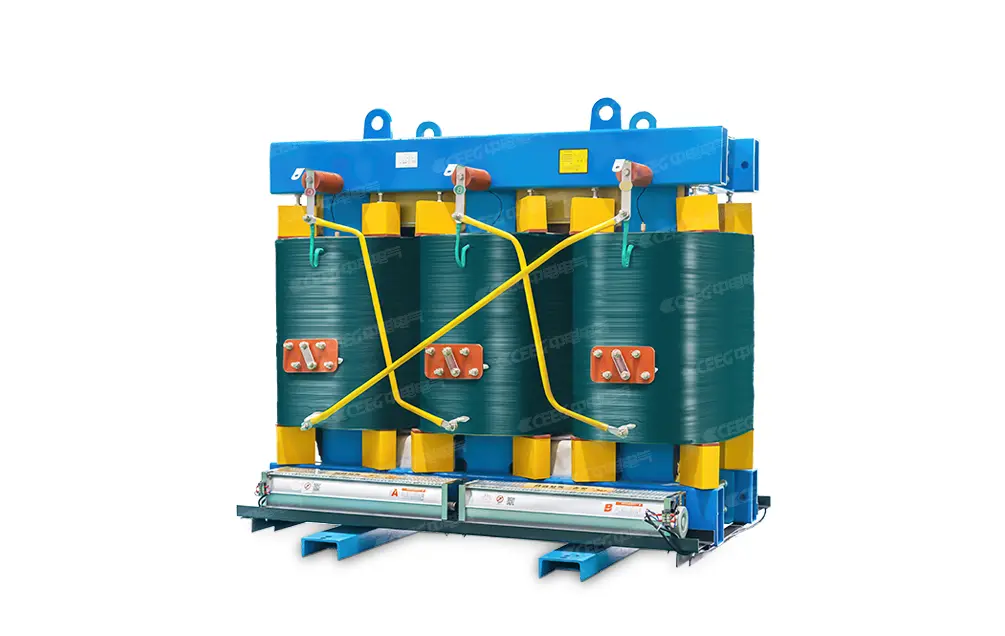

CEEG Amorphous Alloy Dry-Type Transformer

Adopts an amorphous alloy core and dry-type structure. The no-load loss is significantly lower than that of traditional silicon steel transformers. It features a compact size and low noise, meeting high energy efficiency and environmental protection requirements, making it an ideal solution for loss reduction and energy-saving retrofit projects.

Consult Now

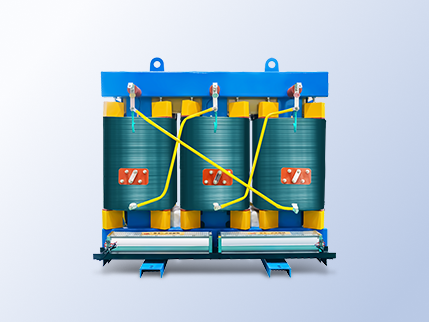

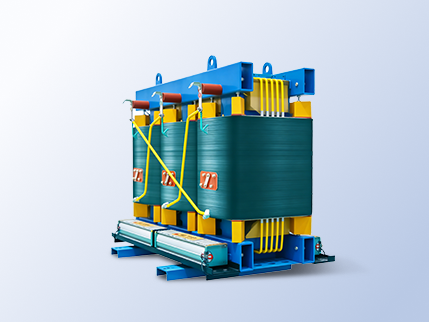

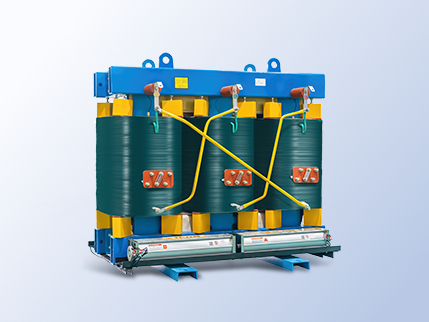

CEEG Amorphous Alloy Dry-Type Transformer - Ultra-Low Loss Cast Resin Transformer for Green Power Distribution

CEEG Amorphous Alloy Dry-Type Transformer - Ultra-Low Loss Cast Resin Transformer for Green Power Distribution

CEEG Amorphous Alloy Dry-Type Transformer - Ultra-Low Loss Cast Resin Transformer for Green Power Distribution

CEEG Amorphous Alloy Dry-Type Transformer - Ultra-Low Loss Cast Resin Transformer for Green Power Distribution

CEEG Amorphous Alloy Dry-Type Transformer - Ultra-Low Loss Cast Resin Transformer for Green Power Distribution

CEEG Amorphous Alloy Dry-Type Transformer - Ultra-Low Loss Cast Resin Transformer for Green Power Distribution

Scope of application

Urban Power Distribution

Public distribution rooms and retrofit of old substations, focusing on reducing no-load losses

Urban Power Distribution

Industrial Parks

Long-term operation and light-load fluctuation scenarios, focusing on energy efficiency and noise reduction

Industrial Parks

New Energy Distribution

Terminal power distribution for photovoltaic and wind power systems, emphasizing energy saving and environmental protection

New Energy Distribution

Product Description

Product Description

1 Amorphous alloy strip core: lower hysteresis loss and no-load current, delivering higher energy efficiency

CEEG Amorphous Alloy Dry-Type Transformer

2 Compared with silicon steel: no-load loss can be reduced by about 60%–80%, making it more suitable for energy-saving distribution applications

CEEG Amorphous Alloy Dry-Type Transformer

3 Compared with conventional dry-type transformers: better performance in energy efficiency, temperature rise control, and noise reduction, suitable for long-term operation

CEEG Amorphous Alloy Dry-Type Transformer

4 Maintenance-free operation: low loss and low temperature rise result in longer service life and reduced maintenance workload, improving long-term benefits

CEEG Amorphous Alloy Dry-Type Transformer

5 Environmentally friendly & safe: meets environmental protection and flame-retardant requirements, with lower operating noise, suitable for areas with strict environmental and safety standards

CEEG Amorphous Alloy Dry-Type Transformer

Product Features

Low Energy Consumption

Optimized Energy Efficiency: Significantly reduces energy loss and improves power utilization efficiency to help lower overall energy consumption.
Cost-Effective Operation: Directly translates energy savings into reduced operating costs for highly economical long-term performance.

Long Service Life

Extended Lifespan: Operates at a low temperature to effectively reduce insulation aging, significantly extending the overall lifespan of the transformer.
Reduced Long-Term Costs: Lowers ongoing maintenance requirements and delays replacement needs, resulting in substantial cost savings.

Flame Retardant & Fire Safety

Advanced Fire Safety: Features high heat resistance and exceptional flame-retardant performance to ensure safe operation under high-temperature conditions.
Eco-Friendly & Safe: Prevents the release of harmful substances during operation, fully prioritizing environmental protection and personnel safety.

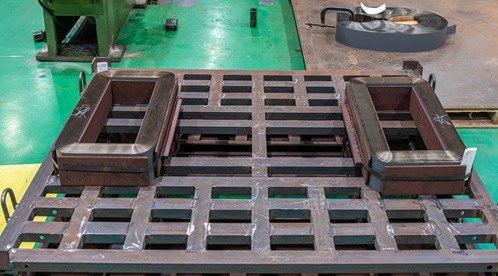

High Mechanical Strength

Superior Mechanical Durability: Engineered with strong mechanical durability to withstand intense structural stress and ensure stable operation even under extreme conditions.
Robust Fault Resistance: Features excellent short-circuit withstand capability to maintain operational integrity and prevent damage during severe electrical faults.

High Economic Benefits

Accelerated ROI: Combines high energy efficiency with low maintenance costs to enable a significantly faster return on investment.
Enhanced Long-Term Economics: Maximizes profitability and financial sustainability by steadily improving long-term economic performance.

Low Noise

Whisper-Quiet Operation: Utilizes low magnetostriction materials and advanced design to dramatically reduce vibration, resulting in significantly quieter operation.
Noise-Sensitive Deployment: Perfectly optimized for strict, noise-sensitive environments such as residential areas, hospitals, and schools.

Main Parameters

Rated Capacity	10 kVA ~ 5000 kVA
Rated Input Voltage	10 kV, 35 kV, 110 kV
Rated Output Voltage	400 V, 230 V
No-Load Loss Reduction	70%~80%
No-Load Current Reduction	Approx. 85%
Load Loss	0.1% ~ 1.2%

Implementation Standard

Implementation Standard

IEC 60076 Series Applicable to all types of power transformers

GB/T 1094 Series Chinese national standards for power transformers

GB/T 18655 Special requirements for amorphous alloy transformers

GB 4208 Enclosure protection rating for transformers

GB/T 2820 Limits for transformer noise emissions

Technical Advantages

R&D Cloud Platform

R&D Cloud Platform

An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.

Simulation Analysis

Simulation Analysis

Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.

Smart Operation & Maintenance Platform

Smart Operation & Maintenance Platform

By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.

Consult Now

Recommended Related More More

More

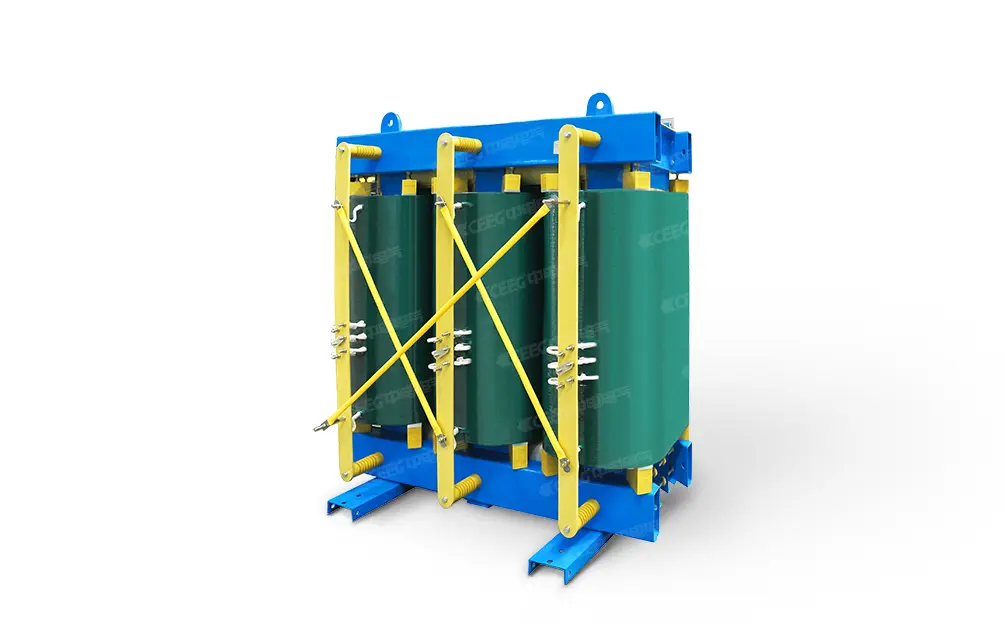

CEEG SCBH15 Amorphous Alloy Dry-Type Transformer

CEEG SCBH15 Amorphous Alloy Dry-Type Transformer

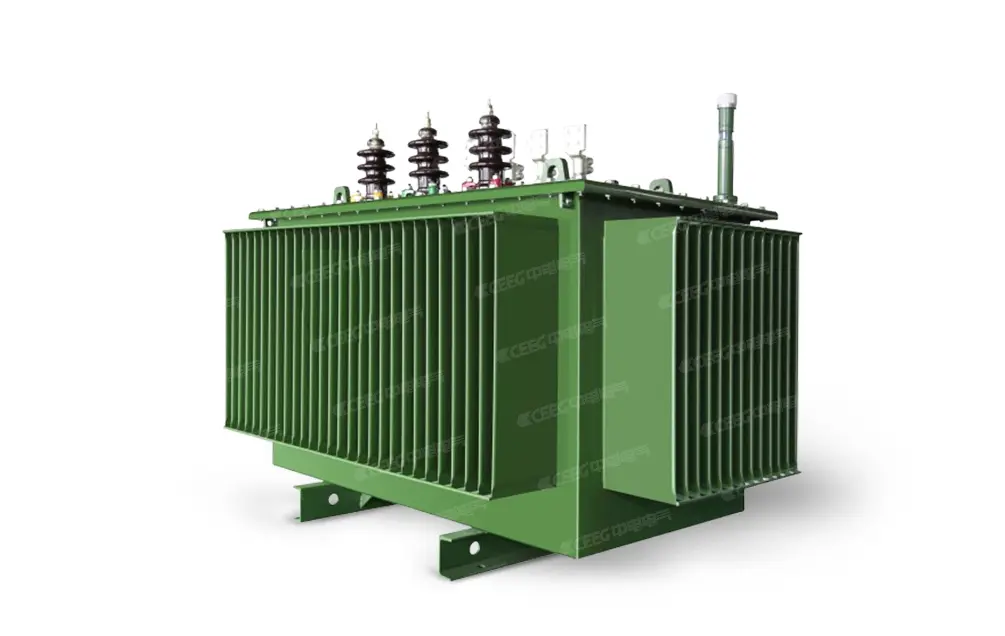

CEEG SCBH19 Amorphous Alloy Dry-Type Transformer

CEEG SCBH19 Amorphous Alloy Dry-Type Transformer

CEEG Amorphous Alloy Dry-Type Transformer

CEEG Amorphous Alloy Dry-Type Transformer

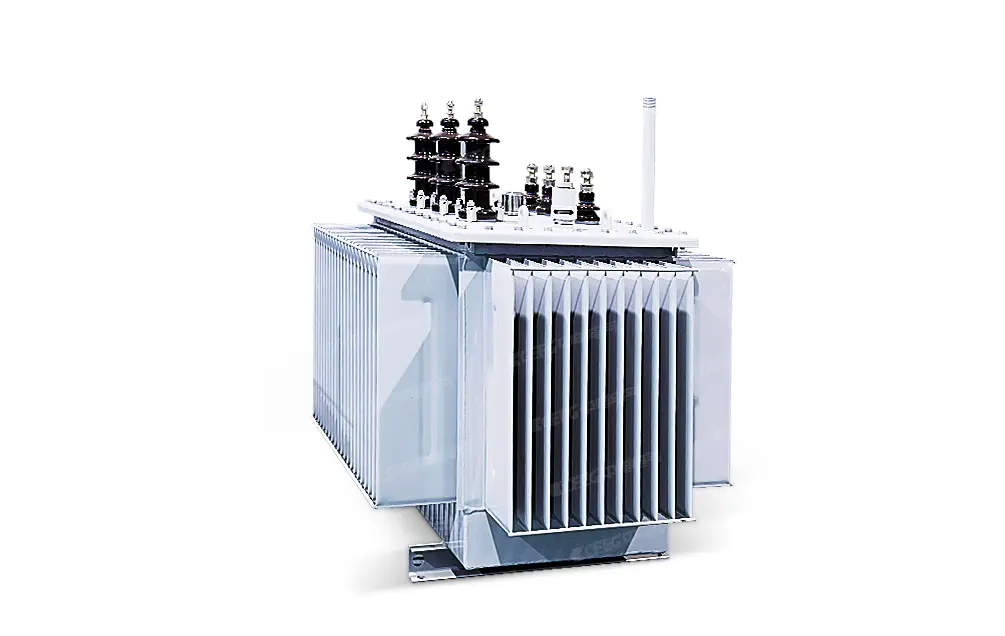

CEEG Oil-Immersed Amorphous Alloy Transformer
