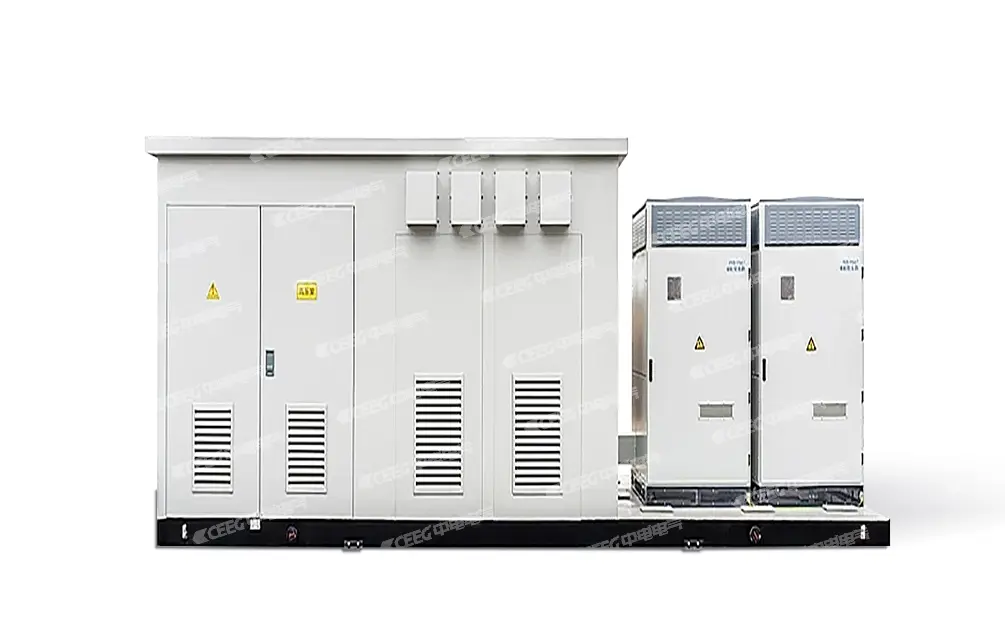

CEEG Integrated PCS and Transformer Turnkey System
This Integrated PCS and Step-Up Transformer System seamlessly combines the energy storage PCS, step-up transformer, and medium-voltage switchgear inside a rugged containerized enclosure. Engineered for flexibility and scalability, it supports a wide voltage range from 6 kV to 35 kV with an impressive single-unit capacity of up to 10MW. Equipped with C5-class anti-corrosion protection, this all-in-one station delivers maximum environmental resilience in harsh climates while drastically streamlining system deployment, on-site installation, and commissioning.
Consult Now Consult Now 1899-414-7812
Integrated PCS and step-up transformer turnkey system for energy storage
Skid-mounted all-in-one PCS station and medium voltage substation enclosure
Integrated PCS and step-up transformer turnkey system for energy storage
Integrated PCS and step-up transformer turnkey system for energy storage
Skid-mounted all-in-one PCS station and medium voltage substation enclosure
Integrated PCS and step-up transformer turnkey system for energy storage
prev
next
Scope of application
Commercial & Industrial (C&I) Energy Storage
Energy storage stations for industrial parks, focusing on simplified configuration and rapid installation.
Commercial & Industrial (C&I) Energy Storage
Solar + Storage Projects
Energy storage for renewable energy power plants, emphasizing environmental adaptability and grid-connection capability.
Solar + Storage Projects
Grid-Side Services
Ancillary services such as peak shaving and frequency regulation, focusing on large capacity and high reliability.
Grid-Side Services
Product Description
Product Description
1 1.Highly Integrated: Integrates inversion, voltage step-up, and power distribution; factory pre-assembled and tested to reduce on-site workload.
CEEG Integrated PCS and Transformer Turnkey System
2 2.Convenient Transportation & Installation: Compact containerized structure for easy transport and lifting, adaptable to various sites.
CEEG Integrated PCS and Transformer Turnkey System
3 3.Strong Environmental Adaptability: Weatherproof and anti-corrosion enclosure with thermal insulation, fireproofing, and heat-preservation design for harsh climates.
CEEG Integrated PCS and Transformer Turnkey System
4 4.Flexible Configuration: Multiple scenario-based combinations and systematic supporting options to meet differentiated requirements.
CEEG Integrated PCS and Transformer Turnkey System
Product Features
CEEG Integrated PCS and Transformer Turnkey System

High Safety

  • Adopts epoxy resin cast dry-type transformer with excellent flame-retardant performance, eliminating potential risks of fire and explosion.
CEEG Integrated PCS and Transformer Turnkey System

Economic Advantages

  • Compared with traditional "inverter room + PV substation" solutions, it saves 15% to 20% of investment costs and shortens installation and commissioning time by 50%.
CEEG Integrated PCS and Transformer Turnkey System

Efficient Heat Dissipation Design

  • The optimized ventilation and heat dissipation system improves the equipment's cooling performance, ensuring stability and high efficiency during long-term operation.
CEEG Integrated PCS and Transformer Turnkey System

Long Service Life

  • Through selecting rational materials and structural design, it reduces equipment wear and tear, ensures long-term stable operation, and lowers maintenance costs.
CEEG Integrated PCS and Transformer Turnkey System

Faster Deployment

  • Integrates voltage step-up, power conversion, and power distribution functions, reducing footprint and on-site wiring volume while shortening the delivery cycle.
CEEG Integrated PCS and Transformer Turnkey System

Smart O&M (Operation & Maintenance)

  • Supports data acquisition and alarm linkage; condition monitoring and fault location are more efficient, making operation and maintenance hassle-free.
Main Parameters
Rated Power Range 500kW ～ 6300kW
Rated Voltage (Low Voltage Side) 0.27kV / 0.4kV / 0.69kV
Rated Voltage (High Voltage Side) 10kV / 35kV
Frequency 50Hz / 60Hz
Cooling Type Forced Air Cooling (AF) or Air Natural (AN)
Implementation Standard
Implementation Standard
GB/T 19939-2005 Technical Requirements for Grid Connection of Photovoltaic Systems
GB/T 50063-2017 Code for Electrical Design of Power Installations
GB/T 4208-2017 Degrees of Protection Provided by Enclosures (IP Code)
GB/T 10228-2015 Technical Parameters and Requirements for Dry-Type Power Transformers
