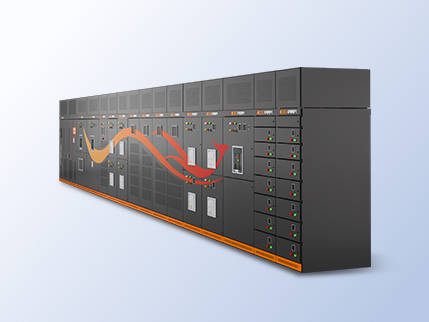

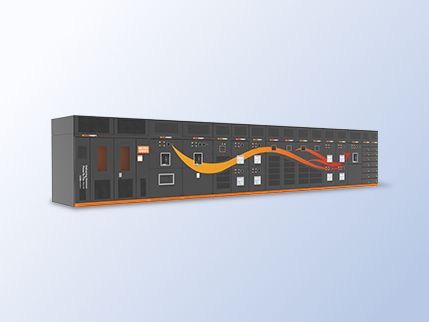

CEEG Integrated Power Supply System

The Integrated Power Supply Module is designed to provide MW-level integrated power distribution solutions for medium and large-scale data centers. By deeply integrating 10 kV distribution systems, transformers, incoming and bus-coupler cabinets, power compensation cabinets, UPS systems, output cabinets, and maintenance bypass cabinets, the system offers flexible customization based on project requirements. Its key features include high intelligence, outstanding energy efficiency, superior reliability, compact power density, and large capacity. It is also designed for easy maintenance, ensuring stable and efficient system operation.

Consult Now

180-1334-5718

Scope of application

Data Centers

Power distribution for computing and data center campuses, focusing on low line losses, modular design, and fast delivery.

Industrial Park Energy Systems

Energy centers for large industrial parks, emphasizing integration and visualized operation and maintenance.

Smart Retrofit Projects

New build or renovation projects, focusing on construction cycle and scalability.

Product Description

1 Transformer: Amorphous alloy Grade 1 energy-efficient transformer with patented semi-encapsulated three-phase three-column technology, significantly reducing no-load loss

2 Incoming Cabinet: Controls the power switching between the transformer’s low-voltage side and the main low-voltage distribution system

3 Bus Coupler Cabinet: Connects two main busbars and controls their switching operations

4 SVG/APF: Reactive power and harmonic compensation, improving system stability and efficiency while enhancing power factor

5 UPS: Supports both modular and tower-type UPS system configurations

6 Maintenance Bypass Cabinet: Used for UPS maintenance or fault conditions to transfer load to an alternative power path

Product Features

Space Saving

The system adopts a high-density integrated design, saving approximately 50% of space, making it suitable for space-constrained applications.

Cost Reduction

Optimized energy flow reduces energy losses by about 30%, improving overall economic efficiency.

Reduced Labor Time

With prefabricated delivery and modular assembly, the delivery cycle is shortened to 2 weeks, saving about 40% of construction time compared with traditional methods.

Energy Saving

Equipped with a Grade 1 energy-efficient amorphous alloy transformer, the system can save approximately 11,000 kWh per year (based on 2500 kVA).

Fast Deployment

Factory prefabrication and pre-assembly enable plug-and-play on-site installation, significantly shortening delivery time.

Easy Operation & Maintenance

Centralized monitoring and alarm linkage allow fast fault localization, improving maintenance efficiency.

Main Parameters

Transformer Input	10kv AC 50/60Hz
Transformer Capacity	1.25MVA- 2.5MVA
Feeder Cabinet Breaker Ratings	630A、 400A、 250A、 160A、 100A
Low Voltage Switchgear	Fixed compartment type / Withdrawable type

Implementation Standard

GB/T 19939-2005 Technical requirements for power transformers

GB/T 18655-2010 General technical requirements for power system automation equipment

ISO 50001:2018 Energy management systems requirements

Technical Advantages

Smart Terminal

An integrated sensing and communication device with simple installation and reduced wiring requirements.

Customer Dashboard

A centralized, visualized, and intelligent management platform for transformers.

AI Safety Operation Model

Uses big data analytics to identify potential risks in advance and enable predictive fault detection.

Maintenance Mini Program

Enables remote management and proactive maintenance, reducing on-site visits and improving operational convenience.
