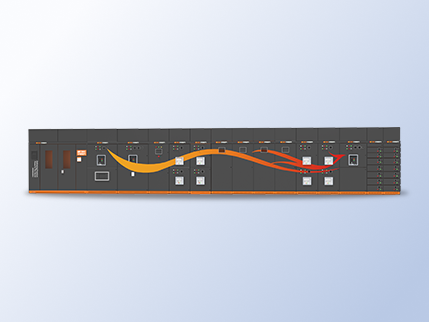

CEEG Modular Power Unit
The Integrated Power Supply Module is designed to provide MW-level integrated power distribution solutions for medium and large data centers. By deeply integrating 10 kV distribution systems, transformers, incoming and bus-coupler cabinets, power compensation cabinets, UPS systems, output cabinets, and maintenance bypass cabinets, the system offers flexible customization based on specific project requirements. Its key features include high intelligence, excellent energy efficiency, outstanding reliability, compact power density, and large capacity. It is also designed for easy maintenance, ensuring stable and efficient system operation.
Consult Now Consult Now 1899-414-7812
CEEG Modular Power Unit - Pre-integrated Mobile Substation for Rapid Deployment and High-Efficiency Power Distribution
CEEG Modular Power Unit - Pre-integrated Mobile Substation for Rapid Deployment and High-Efficiency Power Distribution
CEEG Modular Power Unit - Pre-integrated Mobile Substation for Rapid Deployment and High-Efficiency Power Distribution
CEEG Modular Power Unit - Pre-integrated Mobile Substation for Rapid Deployment and High-Efficiency Power Distribution
CEEG Modular Power Unit - Pre-integrated Mobile Substation for Rapid Deployment and High-Efficiency Power Distribution
CEEG Modular Power Unit - Pre-integrated Mobile Substation for Rapid Deployment and High-Efficiency Power Distribution
prev
next
Scope of application
Data Centers
Power supply and distribution for computing and data center campuses, focusing on low line losses, modular design, and fast delivery.
Data Centers
Industrial Park Energy Systems
Energy centers for large industrial parks, emphasizing integration and visualized operation and maintenance.
Industrial Park Energy Systems
Smart Retrofit Projects
New build or renovation projects, focusing on construction cycle and scalability.
Smart Retrofit Projects
Product Description
Product Description
1 Transformer: Amorphous alloy Grade 1 energy-efficient transformer with patented semi-encapsulated three-phase three-column technology, significantly reducing no-load loss
CEEG Modular Power Unit
2 Incoming Cabinet: Controls the power switching between the transformer’s low-voltage side and the main low-voltage distribution system
CEEG Modular Power Unit
3 Bus Coupler Cabinet: Connects two main busbars and controls their switching operations
CEEG Modular Power Unit
4 SVG/APF: Reactive power and harmonic compensation, improving system stability and efficiency while enhancing power factor
CEEG Modular Power Unit
5 UPS: Supports both modular and tower-type UPS system configurations
CEEG Modular Power Unit
6 Maintenance Bypass Cabinet: Used for UPS maintenance or fault conditions to transfer load to an alternative power path
CEEG Modular Power Unit
Product Features
CEEG Modular Power Unit

Space Saving

  • High-Density Integration: Adopts a compact, integrated design that saves approximately 50% of available space.
  • Space-Optimized: Perfectly suited for tight installations and highly space-constrained applications.
CEEG Modular Power Unit

Cost Reduction

  • Optimized Energy Flow: Smart management paths reduce system energy losses by about 30%.
  • Economic Efficiency: Maximizes cost savings and improves overall economic return on investment.
CEEG Modular Power Unit

Energy Saving

  • Grade 1 Energy Efficiency: Equipped with a premium amorphous alloy transformer that meets the highest energy-saving standards.
  • Massive Cost Savings: Reduces power consumption by approximately 11,000 kWh per year (calculated using a 2500 kVA configuration).
CEEG Modular Power Unit

Reduced Labor Time

  • Prefabricated Delivery: Arrives on-site ready for deployment thanks to prefabricated components and modular assembly.
  • Accelerated Timeline: Shortens the system delivery cycle to just 2 weeks, slashing construction time by about 40% compared to traditional methods.
CEEG Modular Power Unit

Fast Deployment

  • Plug-and-Play Installation: Features factory prefabrication and pre-assembly, allowing for effortless on-site deployment.
  • Rapid Delivery: Minimizes on-site adjustments and labor, significantly shortening the overall project delivery time.
CEEG Modular Power Unit

Easy Operation & Maintenance

  • Plug-and-Play: Factory prefabrication enables fast on-site installation.
  • Rapid Delivery: Centralized monitoring and alarm linkage speed up troubleshooting and maintenance.
Main Parameters
Transformer Input 10kv AC 50/60Hz
Transformer Capacity 1.25MVA- 2.5MVA
Feeder Cabinet Breaker Ratings 630A、 400A、 250A、 160A、 100A
Low Voltage Switchgear Fixed compartment type / Withdrawable type
Implementation Standard
Implementation Standard
GB/T 19939-2005 Technical requirements for power transformers
GB/T 18655-2010 General technical requirements for power system automation equipment
ISO 50001:2018 Energy management systems requirements
UL 60950-1 Safety Requirements for Information Technology Equipment
Technical Advantages
Smart Terminal
Smart Terminal
An integrated sensing and communication device with simple installation and reduced wiring requirements.

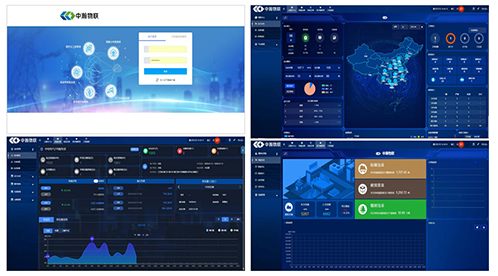

Customer Dashboard
Customer Dashboard
A centralized, visualized, and intelligent management platform for transformers.
AI Safety Operation Model
AI Safety Operation Model
Uses big data analytics to identify potential risks in advance and enable predictive fault detection.
Maintenance Mini Program
Maintenance Mini Program
Enables remote management and proactive maintenance, reducing on-site visits and improving operational convenience.
Consult Now
+86
+852
+853
+886
+81
Recommended Related More More
CEEG Integrated Power Supply System
CEEG Integrated Power Supply System
View Details

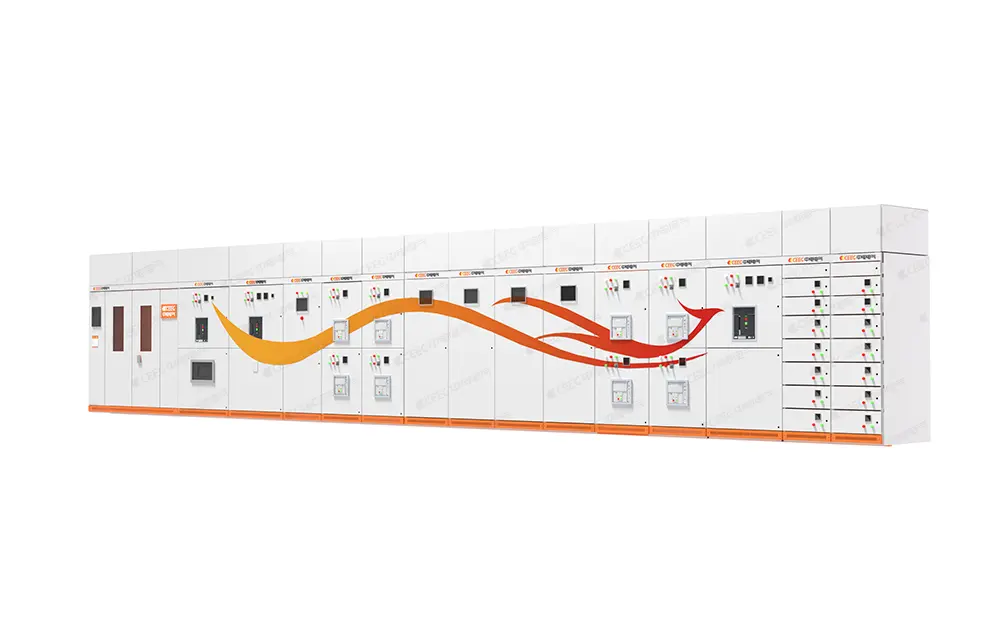

CEEG Modular Power Unit
CEEG Modular Power Unit
View Details

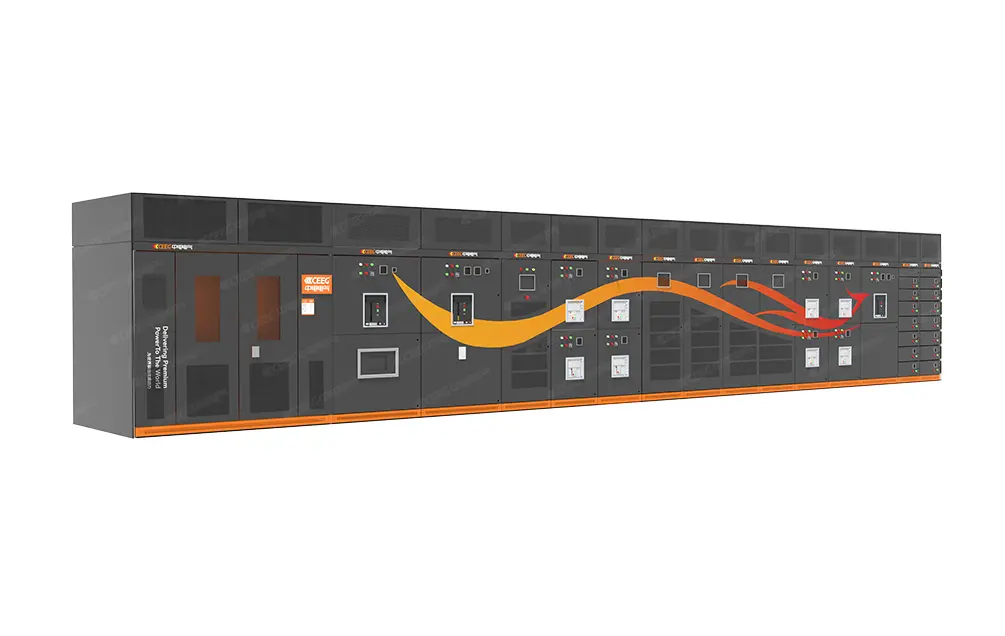

CEEG Uninterruptible Power Supply (UPS)
CEEG Uninterruptible Power Supply (UPS)
View Details

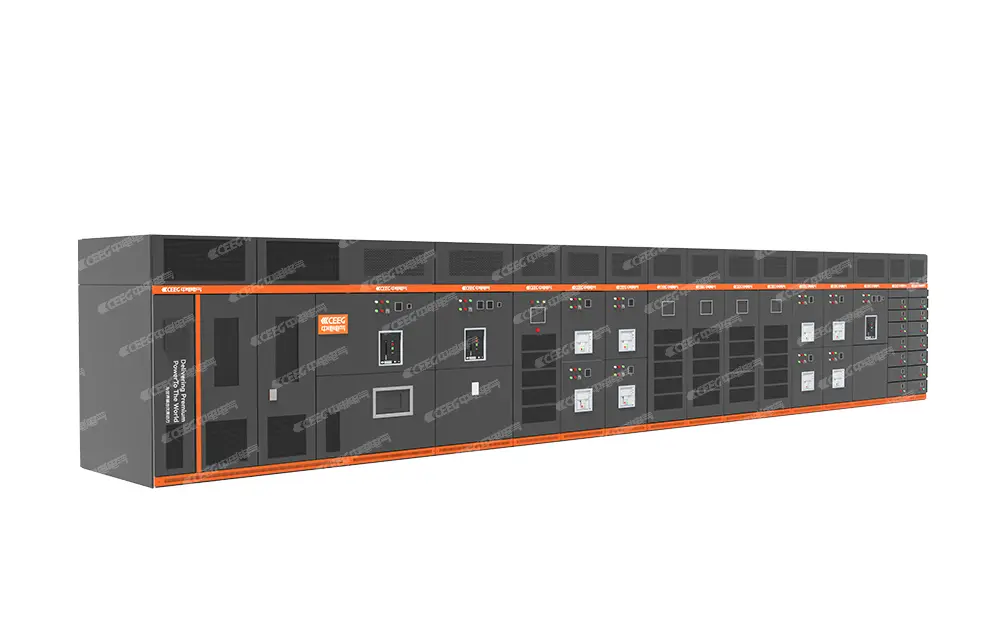

CEEG IDC Smart Integrated Power Module
