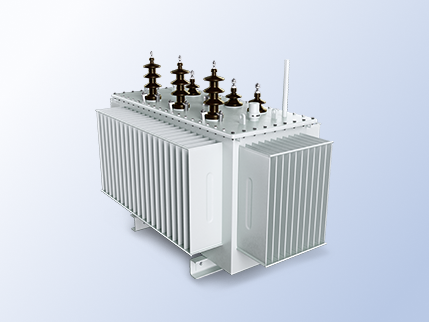

CEEG Oil-Immersed Amorphous Alloy Transformer

Adopts an amorphous alloy core and oil-immersed cooling structure, with significantly lower no-load loss and no-load current compared to traditional silicon steel transformers. It also features lower operating noise and temperature rise, making it suitable for long-term continuous operation and helping reduce lifecycle energy consumption and maintenance costs of the power distribution system.

Consult Now

CEEG Oil-Immersed Amorphous Alloy Transformer - Ultra-Low Loss SH15 Series Energy-Saving Power Transformer

CEEG Oil-Immersed Amorphous Alloy Transformer - Ultra-Low Loss SH15 Series Energy-Saving Power Transformer

CEEG Oil-Immersed Amorphous Alloy Transformer - Ultra-Low Loss SH15 Series Energy-Saving Power Transformer

CEEG Oil-Immersed Amorphous Alloy Transformer - Ultra-Low Loss SH15 Series Energy-Saving Power Transformer

CEEG Oil-Immersed Amorphous Alloy Transformer - Ultra-Low Loss SH15 Series Energy-Saving Power Transformer

CEEG Oil-Immersed Amorphous Alloy Transformer - Ultra-Low Loss SH15 Series Energy-Saving Power Transformer

Scope of application

Terminal Power Distribution

Residential areas, commercial buildings, and other long-term operation scenarios, focusing on no-load losses

Terminal Power Distribution

Industrial Park Distribution

Power distribution stations in industrial parks, emphasizing energy efficiency and low noise

Industrial Park Distribution

New Energy End-Use

Terminal power distribution in renewable energy stations, focusing on temperature rise and operational stability

New Energy End-Use

Product Description

Product Description

1 Amorphous Core for Higher Efficiency: The amorphous alloy core significantly reduces no-load loss and no-load current.

CEEG Oil-Immersed Amorphous Alloy Transformer

2 Outstanding Energy Saving: No-load loss can be reduced by approximately 70%–80%, and no-load current by about 85% compared to traditional silicon steel transformers.

CEEG Oil-Immersed Amorphous Alloy Transformer

3 Lower Temperature Rise & Longer Lifespan: Reduced losses lead to less heat generation, slower insulation aging, and extended service life.

CEEG Oil-Immersed Amorphous Alloy Transformer

4 Stable Oil-Immersed Cooling: Oil-immersed cooling improves heat dissipation, ensuring reliable operation under high temperature and heavy load conditions.

CEEG Oil-Immersed Amorphous Alloy Transformer

5 Low Noise & Environmentally Friendly: Low operating noise meets the requirements of environmentally sensitive and low-noise application scenarios.

CEEG Oil-Immersed Amorphous Alloy Transformer

6 Better Lifecycle Cost: Lower maintenance requirements and shorter payback period result in reduced long-term operating costs.

CEEG Oil-Immersed Amorphous Alloy Transformer

Product Features

High Energy Efficiency

Revolutionary Energy Savings: Reduces no-load loss by 70%–80% and slashes no-load current by approximately 85% compared to traditional silicon steel transformers, significantly improving overall energy efficiency.
Continuous Power Stability: Delivers highly efficient performance that is especially suited for applications requiring a long-term, stable power supply.

Low Temperature Rise & Long Lifespan

Slowed Insulation Aging: Features low loss characteristics that keep the operating temperature rise minimal, effectively slowing down insulation aging.
Extended Service Life & Low Costs: Offers a typical service life of over 20 years for oil-immersed amorphous alloy transformers, drastically reducing long-term maintenance and replacement costs.

High Safety & Reliability

Efficient Thermal Management: Utilizes an oil-immersed cooling method to ensure highly efficient heat dissipation, effectively minimizing the risk of equipment overheating.
High Impact & Fault Resilience: Engineered to withstand high impact and heavy short-circuit currents, ensuring reliable, long-term stable operation under stressful conditions.

Environmentally Friendly & Low Noise

Eco-Friendly Construction: Manufactured with environmentally friendly materials, ensuring sustainable and safe deployment.
Quiet, Low-Noise Operation: Operates with relatively low noise levels, making it perfectly suited for noise-sensitive environments such as residential areas, commercial zones, and hospitals.

Compact Design & Space Saving

Space-Saving Compact Design: Engineered with a more compact footprint compared to traditional silicon steel transformers, significantly saving valuable installation space.
Ideal for Space-Constrained Areas: Perfectly suited for space-limited applications, including high-rise buildings, underground facilities, and urban old grid upgrades.

Fast Return on Investment

Accelerated Financial Payback: Combines ultra-low energy consumption with an extended service life to significantly reduce operating costs and achieve a much faster payback period.
Enhanced Long-Term Economy: Maximizes return on investment by delivering vastly superior long-term economic benefits over the equipment's lifecycle.

Main Parameters

Rated Capacity	10 kVA ~ 5000 kVA
Rated Input Voltage	10 kV, 35 kV, 110 kV
Rated Output Voltage	400 V, 230 V
No-Load Loss Reduction	70%~80%
No-Load Current Reduction	Approx. 85%

Implementation Standard

Implementation Standard

IEC 60076 Series Applicable to all types of power transformers

GB/T 1094 Series Chinese national standards for power transformers

GB/T 18655 Special requirements for amorphous alloy transformers

GB 4208 Enclosure protection rating standards for transformers

GB/T 2820 Limits for transformer noise emissions

Technical Advantages

R&D Cloud Platform

R&D Cloud Platform

An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.

Simulation Analysis

Simulation Analysis

Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.

Smart Operation & Maintenance Platform

Smart Operation & Maintenance Platform

By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.
