CEEG Pad Mounted Transformer

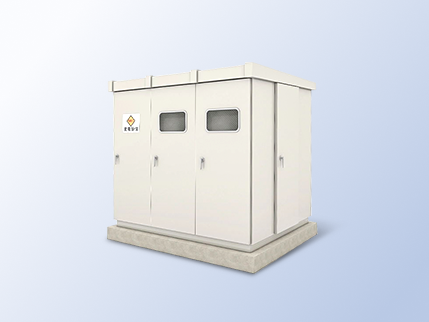

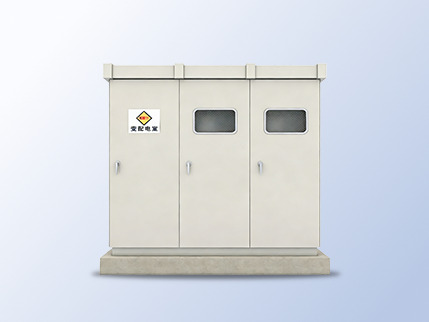

CEEG's Huashi series landscape-friendly box type transformer offers a premium, high-insulation power solution. It integrates high-voltage switchgear, our signature H-class distribution transformer, and low-voltage distribution equipment within a landscape-friendly enclosure. The entire box type transformer system is factory-prefabricated and enables rapid on-site installation and commissioning. Furthermore, this heavy-duty box type outdoor transformer enclosure provides exceptional waterproof, anti-corrosion, and dustproof protection, with customizable appearance, dimensions, and cable outlet configurations to perfectly meet your specific project requirements.
Consult Now Consult Now 1899-414-7812
CEEG Pad-Mounted Distribution Transformer for Underground Electrical Grids and Solar Farms
CEEG Pad-Mounted Distribution Transformer for Underground Electrical Grids and Solar Farms
CEEG Pad-Mounted Distribution Transformer for Underground Electrical Grids and Solar Farms
CEEG Pad-Mounted Distribution Transformer for Underground Electrical Grids and Solar Farms
CEEG Pad-Mounted Distribution Transformer for Underground Electrical Grids and Solar Farms
CEEG Pad-Mounted Distribution Transformer for Underground Electrical Grids and Solar Farms
prev
next
Scope of application

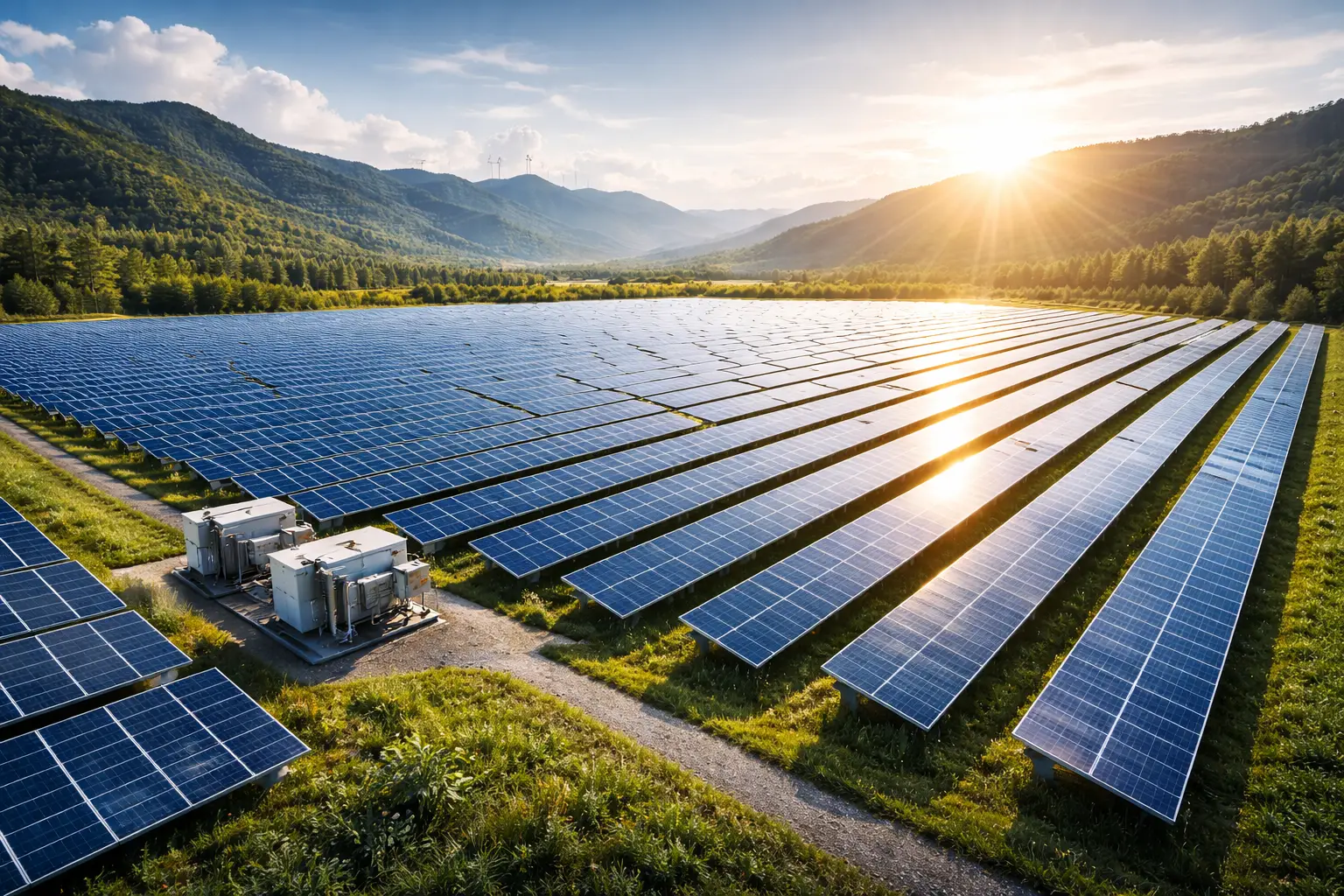

Centralized PV Power Plants
Step-up and grid connection at collection stations, focusing on outdoor weather resistance and rapid commissioning.
Centralized PV Power Plants
Distributed Power Plants
Collection substations for industrial park distributed generation, emphasizing small footprint and construction efficiency.
Distributed Power Plants

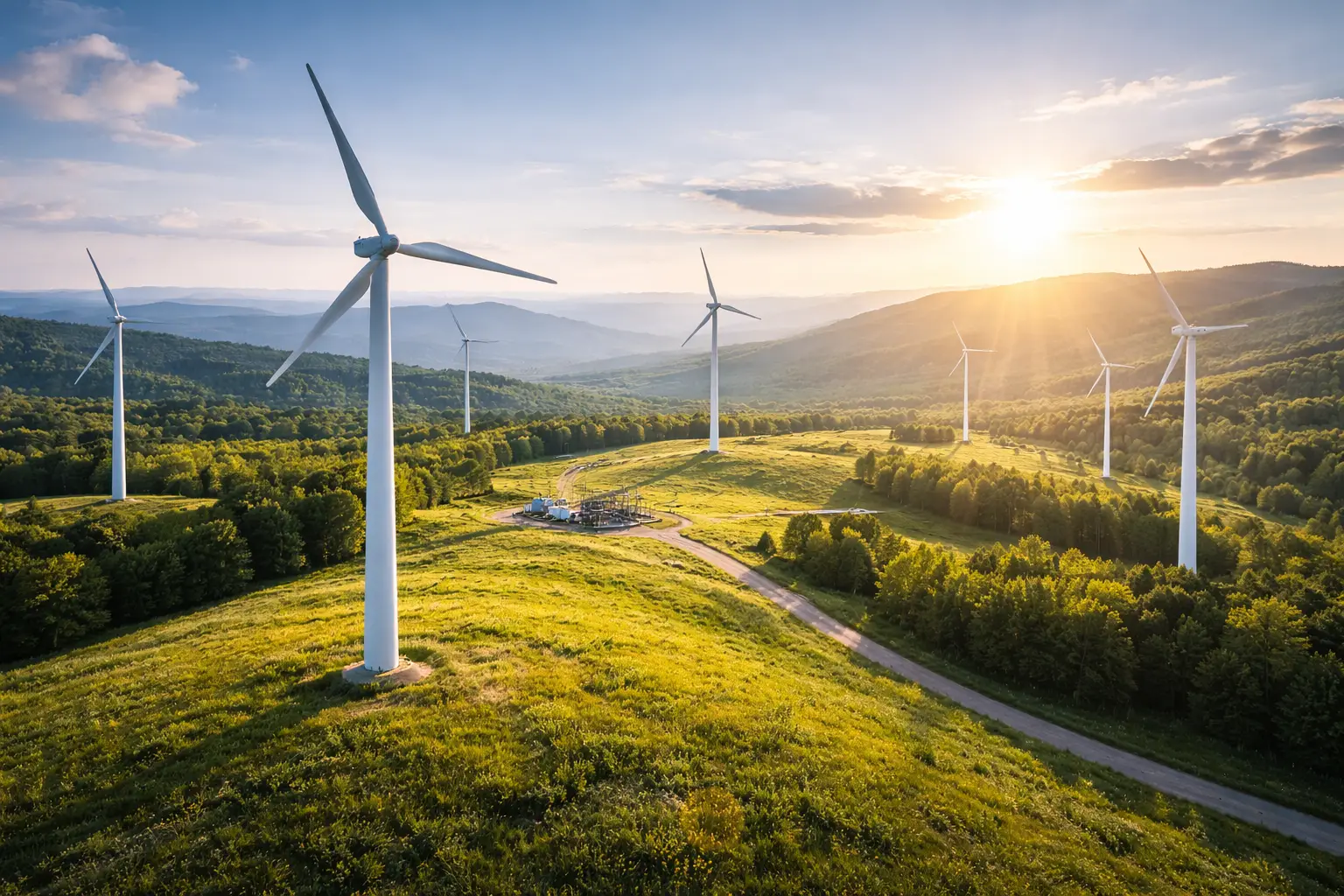

Onshore Wind Farms
Collection systems at turbine bases, focusing on heat dissipation and environmental adaptability.
Onshore Wind Farms
Product Description
Product Description
1 Aesthetic design: Modern appearance with harmonious integration into the surrounding environment, suitable for urban areas, industrial parks, and other application scenarios.
CEEG Pad Mounted Transformer
2 Flexible configuration: Supports ring main unit or radial (terminal) high-voltage configurations, while low-voltage equipment can be equipped with various switchgear and control solutions.
CEEG Pad Mounted Transformer
3 Compact structure: Integrates high-voltage switchgear, transformer, and low-voltage distribution equipment into a single compact unit, significantly reducing footprint.
CEEG Pad Mounted Transformer
4 Superior heat dissipation performance: Features unique guided ventilation technology, ensuring excellent cooling performance, strong overload capacity, and reliable operation.
CEEG Pad Mounted Transformer
Product Features
CEEG Pad Mounted Transformer

Easy installation

  • Modular Transportation: Enables convenient logistics and rapid on-site installation.
  • Universal Scenario Fit: Engineered with flexible adaptability suitable for various complex application scenarios.
CEEG Pad Mounted Transformer

Energy-efficient performance

  • Low No-Load Loss: Features high-quality transformers to drastically lower standby energy consumption.
  • High Operating Efficiency: Delivers premium operational performance to significantly reduce overall energy waste.
CEEG Pad Mounted Transformer

Safe and reliable

  • Dual-Layer Fault Shield: Integrates high-precision short-circuit and overload protection.
  • Secure System Operation: Prevents grid-level electrical hazards to ensure stable, secure operation.
CEEG Pad Mounted Transformer

High durability

  • 3-Proof Material Defense: Built with premium anti-corrosion, waterproof, and dustproof materials.
  • Harsh Environment Longevity: Engineered for rugged outdoor deployability to ensure a long service life.
CEEG Pad Mounted Transformer

Small footprint and strong adaptability

  • Ultra-Compact Grid Footprint: Features a compact structure suitable for urban power grids.
  • Narrow-Space Industrial Fit: Engineered for industrial/commercial sites with limited space and narrow installation conditions.
CEEG Pad Mounted Transformer

Maintenance-friendly design

  • Zoned Safety Architecture: Features clear electrical zoning with sufficient inspection channels and operation space.
  • Time-Saving Component Swaps: Optimizes internal access to make routine inspection and component replacement more efficient.
Main Parameters
Rated Capacity 100kVA ～ 2500kVA
Rated Voltage (HV Side) 6kV、10kV、35kV
Rated Voltage (LV Side) 0.4kV
Vector Group Dyn11 / Yyn0
Insulation Class F / H
Cooling Method Natural Air Cooling (AN) / Forced Air Cooling (AF)
Implementation Standard
Implementation Standard
GB/T 17467-2020 High/Low Voltage Prefabricated Substation
GB/T 6451-2020 Technical Specifications and Requirements for Oil-Immersed Power Transformers
GB/T 10228-2015 Technical Specifications and Requirements for Dry-Type Power Transformers
GB/T 1094.1-2013 Power Transformers – Part 1: General
GB 4208-2017 Degree of Protection of Enclosures
Digital Intelligence &
Manufacturing Excellence
The Digital Twin:
Simulation & Intelligence
CEEG R&D Cloud Platform integrates multi-physics simulation (thermal, fluid, magnetic, mechanical) and cloud-based management for lifetime operational intelligence.
Precision Manufacturing & Testing
Every CEEG transformer is crafted under strict quality control, transitioning from precise design to final testing across modern production lines.
MODERN PRODUCTION & ASSEMBLY CENTRES
MODERN PRODUCTION & ASSEMBLY CENTRES
HIGH-EFFICIENCY CORE TECHNOLOGY
HIGH-EFFICIENCY CORE TECHNOLOGY
PRECISION COIL WINDING
PRECISION COIL WINDING
ROBUST STRUCTURAL INTEGRITY
ROBUST STRUCTURAL INTEGRITY
RIGOROUS FACTORY ACCEPTANCE TESTING (FAT)
RIGOROUS FACTORY ACCEPTANCE TESTING (FAT)
Consult Now
+86
+852
+853
+886
+81
Recommended Related More More

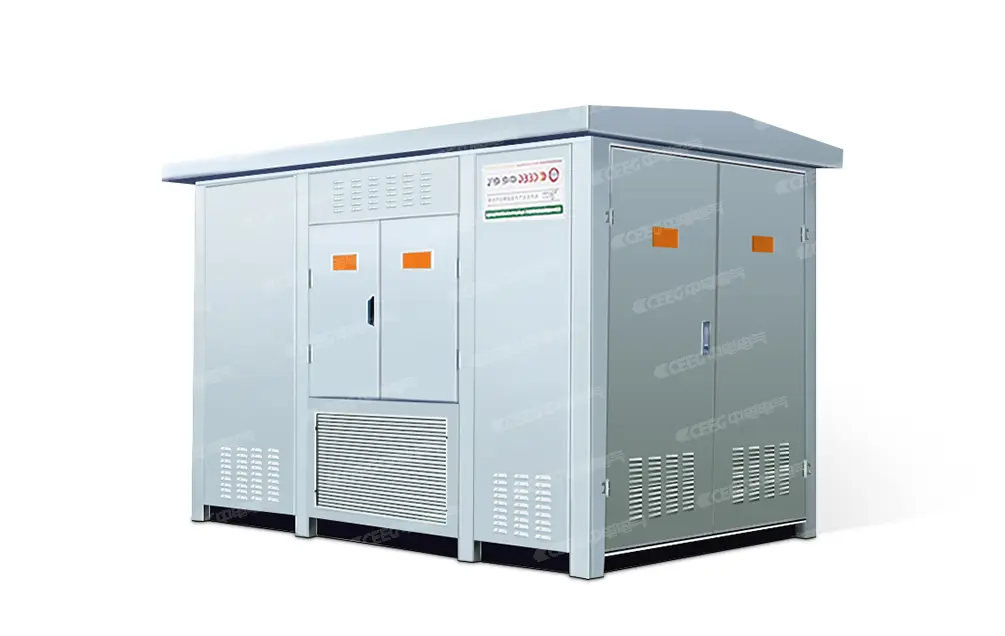

CEEG YBF Series Wind & Solar Prefabricated Substation
CEEG YBF Series Wind & Solar Prefabricated Substation
View Details
CEEG Pad Mounted Transformer
CEEG Pad Mounted Transformer
View Details

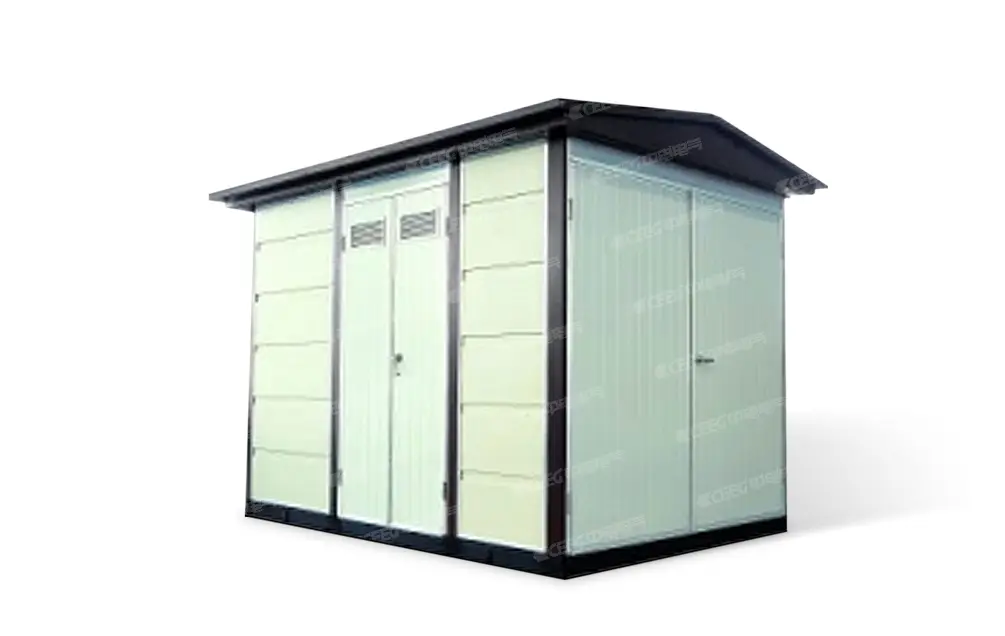

CEEG Amorphous Alloy Prefabricated Substation
CEEG Amorphous Alloy Prefabricated Substation
View Details

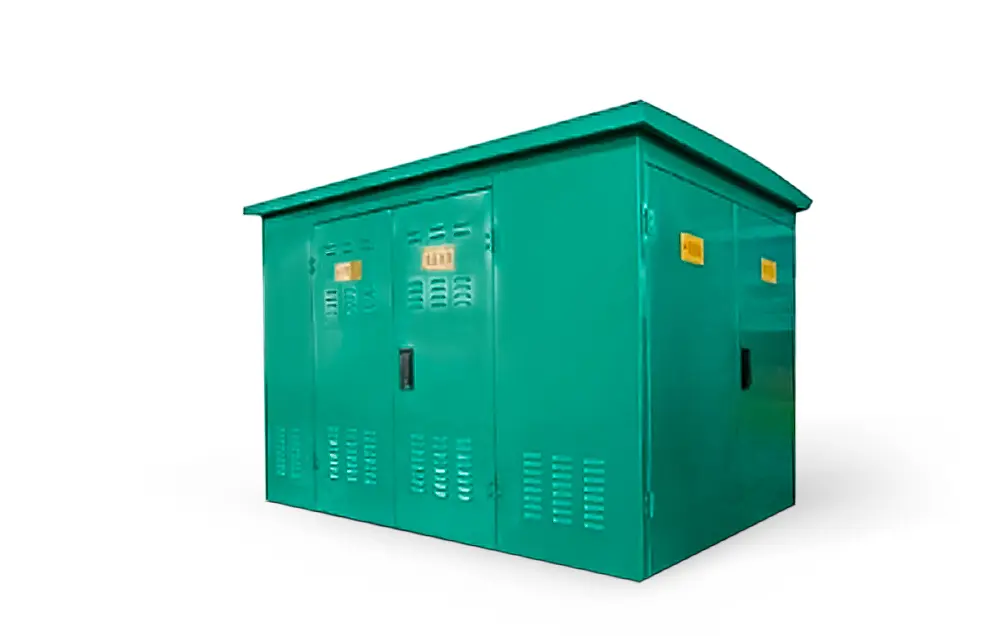

CEEG Semi-Buried Prefabricated Substation
CEEG Semi-Buried Prefabricated Substation
View Details

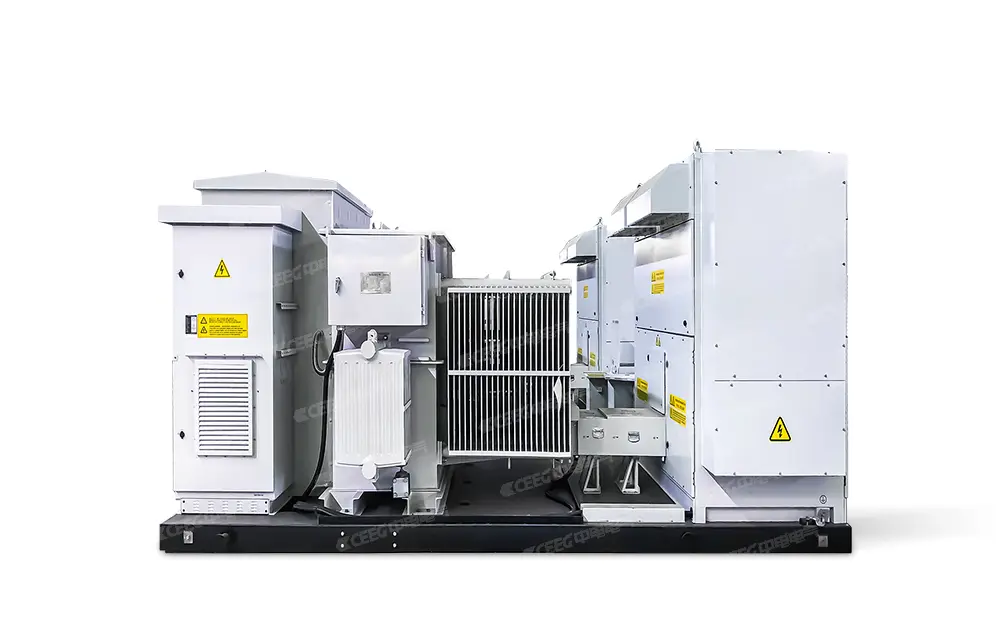

CEEG Solar PV Dedicated Prefabricated Substation
CEEG Solar PV Dedicated Prefabricated Substation
View Details
CEEG ZGS Series American Type Pad Mounted Substation
CEEG ZGS Series American Type Pad Mounted Substation
View Details

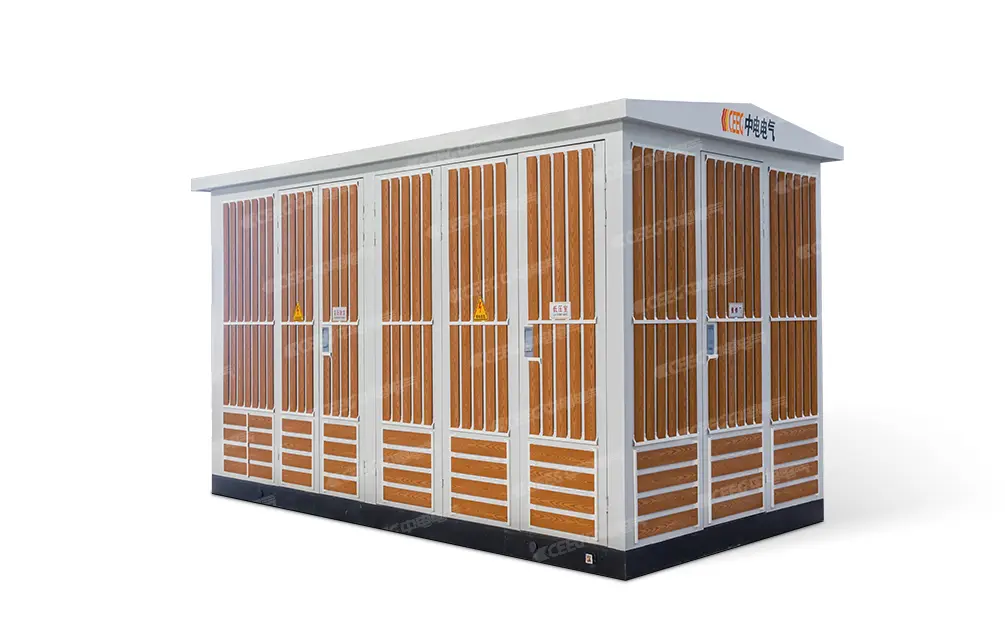

CEEG YB Series European Type Prefabricated Substation
CEEG YB Series European Type Prefabricated Substation
View Details

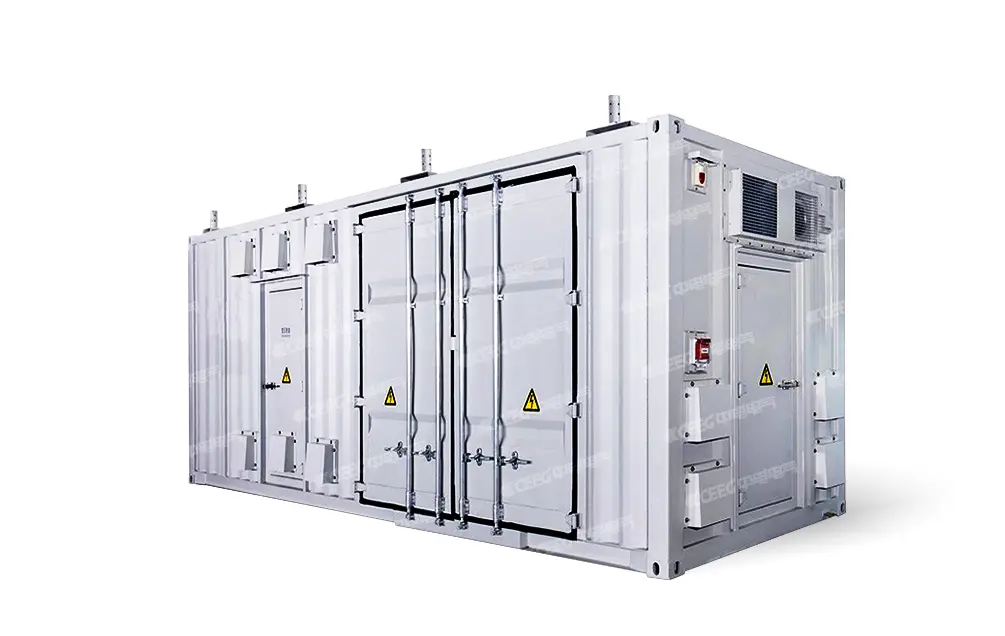

CEEG Prefabricated Cabin Smart Substation
