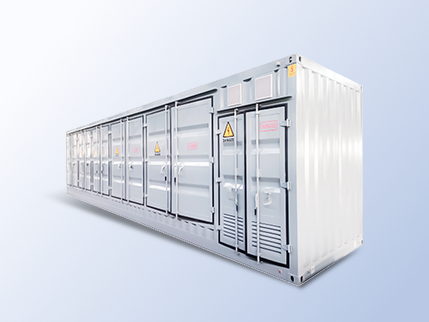

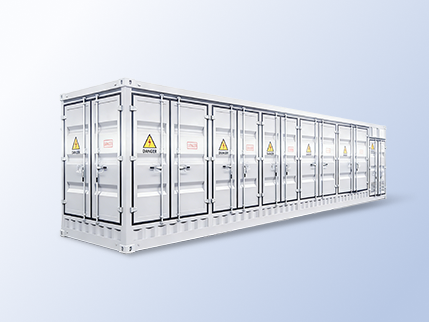

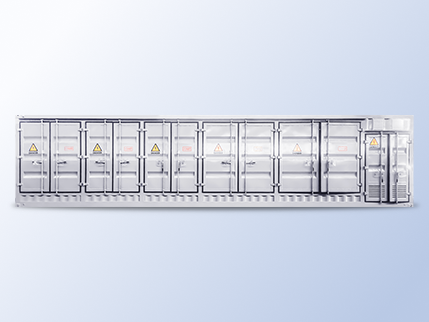

CEEG Prefabricated Cabin Smart Substation
Factory-integrated and pre-tested solution combining high-voltage switchgear, transformer (or integrated power unit), and low-voltage distribution system within a single enclosure, enabling modular lifting and rapid commissioning on site; supports integrated monitoring of electrical systems, environmental conditions, and security, with remote operation and maintenance interfaces.
Consult Now Consult Now 1899-414-7812
CEEG Prefabricated Cabin Smart Substation - Modular and Intelligent Power Distribution System
CEEG Prefabricated Cabin Smart Substation - Modular and Intelligent Power Distribution System
CEEG Prefabricated Cabin Smart Substation - Modular and Intelligent Power Distribution System
CEEG Prefabricated Cabin Smart Substation - Modular and Intelligent Power Distribution System
CEEG Prefabricated Cabin Smart Substation - Modular and Intelligent Power Distribution System
CEEG Prefabricated Cabin Smart Substation - Modular and Intelligent Power Distribution System
prev
next
Scope of application
Data Centers
Power supply and distribution for computing power parks, focusing on factory prefabrication and rapid delivery to ensure fast deployment of critical infrastructure.
Data Centers
Renewable Energy Integration
Step-up and collection substations with emphasis on remote operation and maintenance interfaces, as well as modular design for flexible system integration.
Renewable Energy Integration
Industrial Park Distribution Centers
Smart industrial parks focusing on real-time monitoring, alarm functions, and improved maintenance efficiency for intelligent power management.
Industrial Park Distribution Centers
Product Description
Product Description
1 Containerized modular design: Standardized prefabricated cabin customized in factory, enabling direct on-site placement and installation to significantly improve construction efficiency.
CEEG Prefabricated Cabin Smart Substation
2 Fully integrated system design: Centralized layout of transformer, high/low voltage switchgear, control, metering, and compensation systems for compact and efficient integration.
CEEG Prefabricated Cabin Smart Substation
3 Factory testing and commissioning: Complete debugging and testing in the factory according to standards, ensuring stable operation readiness upon delivery.
CEEG Prefabricated Cabin Smart Substation
4 Rapid substation deployment with prefabricated cabin: Modular solution simplifies construction processes, shortens project timelines and investment cycles, and enhances operational safety.
CEEG Prefabricated Cabin Smart Substation
Product Features
CEEG Prefabricated Cabin Smart Substation

Customized design

  • Tailored Project Design: Fully customized based on specific project site conditions and field requirements.
  • Optimal Adaptability: Engineered to guarantee maximum operational efficiency and seamless integration.
  • Client-Centric Solutions: Formulated to perfectly match diverse, individual, and complex customer needs.
CEEG Prefabricated Cabin Smart Substation

Prefabricated modular system

  • Fast Flexible Assembly: Features an advanced structural engineering design to enable fast and highly flexible assembly.
  • 00% Factory Prefabricated: Completes all manufacturing, assembly, testing, and commissioning entirely within the factory.
  • Rapid Modular Lifting: Utilizes on-site modular lifting to significantly shorten overall project construction time.
CEEG Prefabricated Cabin Smart Substation

Integrated intelligent monitoring

  • 3-in-1 System Integration: Seamlessly integrates electrical, video surveillance, and environmental monitoring systems.
  • Bespoke Smart Scaling: Fully customized and scaled based on specific, individual customer requirements.
  • Multi-Dimensional Detection: Empowers critical power infrastructure with intelligent, real-time management and detection.
CEEG Prefabricated Cabin Smart Substation

Integrated system services platform

  • 5-in-1 Unified Access: Provides a single, centralized interface for SCADA, fire, video, and environmental systems.
  • Zero Data Silos: Eliminates fragmented multi-platform switching to streamline control and command operations.
  • Maximized O&M Efficiency: Optimizes real-time data flow to drastically improve overall management efficiency.
CEEG Prefabricated Cabin Smart Substation

Factory prefabrication with rapid delivery

  • Primary & Secondary Integration: Features full integration and rigid testing of primary and secondary systems in the factory.
  • Plug-and-Play On-Site Deployment: Requires only positioning and connection on-site to significantly reduce construction time.
  • Zero-Risk Installation: Eliminates on-site wiring complexity to minimize field installation risks and errors.
CEEG Prefabricated Cabin Smart Substation

High protection and reliability

  • All-Weather Shield: Engineered with an IP-rated rainproof, dustproof, and weather-resistant enclosure.
  • Anti-Corrosion & Seismic: Built to deliver excellent anti-corrosion performance and heavy-duty seismic design.
  • Maximum Power Continuity: Ensures stable long-term outdoor operation, improving power supply safety.
Main Parameters
Rated Voltage 6kV、10kV、20kV、35kV
Rated Capacity 50kVA～2500kVA
Rated Current (HV Side) 100A～630A
Rated Current (LV Side) 100A～4000A
Rated Frequency 50Hz/60Hz
Implementation Standard
Implementation Standard
GB/T 17467 High/Low Voltage Prefabricated Substation
GB 1094 Power Transformer
GB/T 7251 Low Voltage Switchgear and Controlgear Assemblies
IEC 62271-202 International Standard High/Low Voltage Prefabricated Substation
IEC 61439 Low Voltage Switchgear and Controlgear Assemblies
Technical Advantages
R&D Cloud Platform
R&D Cloud Platform
An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.
Simulation Analysis
Simulation Analysis
Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.
Smart Operation & Maintenance Platform
Smart Operation & Maintenance Platform
By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.
