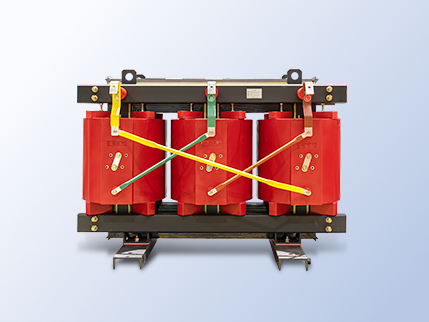

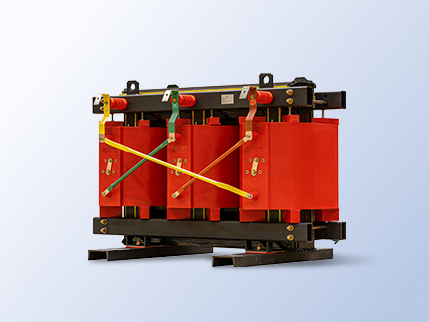

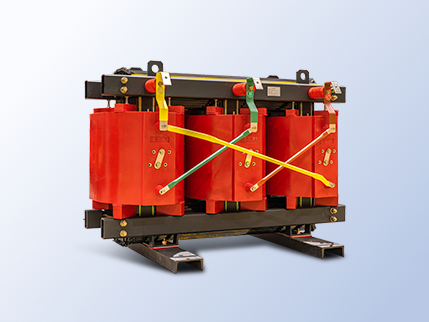

CEEG SCB13 Dry-Type Transformer

Adopting resin-cast insulation and an oil-free structure, the transformer is suitable for indoor installations and areas with high personnel density. It emphasizes fire safety, environmental protection with zero leakage risk, and low maintenance requirements. Optional natural air cooling or forced air cooling configurations are available to meet different load conditions and continuous operation demands. The SCB13 series is a high-efficiency mainstream model, better suited for procurement projects and long-term operations where energy saving is a key performance requirement.

Consult Now

CEEG SCB13 Dry-Type Transformer - Level 2 Energy Efficiency Cast Resin Transformer with Ultra-Low Loss

CEEG SCB13 Dry-Type Transformer - Level 2 Energy Efficiency Cast Resin Transformer with Ultra-Low Loss

CEEG SCB13 Dry-Type Transformer - Level 2 Energy Efficiency Cast Resin Transformer with Ultra-Low Loss

CEEG SCB13 Dry-Type Transformer - Level 2 Energy Efficiency Cast Resin Transformer with Ultra-Low Loss

CEEG SCB13 Dry-Type Transformer - Level 2 Energy Efficiency Cast Resin Transformer with Ultra-Low Loss

CEEG SCB13 Dry-Type Transformer - Level 2 Energy Efficiency Cast Resin Transformer with Ultra-Low Loss

Scope of application

Long-Term Operation in Data Centers

Suitable for data centers and telecom facilities with continuous loads, focusing on energy efficiency and operational stability.

Long-Term Operation in Data Centers

Industrial Parks & Building Power Distribution

Ideal for park-level substations and centralized building distribution systems, supporting reliable long-term operation and management.

Industrial Parks & Building Power Distribution

New Energy & Emerging Load Applications

Compatible with photovoltaic systems, energy storage, and EV charging stations, well-suited to the operating characteristics of modern and emerging electrical loads.

New Energy & Emerging Load Applications

Product Description

Product Description

1 High-Quality Core Material: Made of premium high-permeability silicon steel with full mitered joints and multi-step step-lap technology, ensuring low no-load losses and improved energy efficiency.

CEEG SCB13 Dry-Type Transformer

2 Low Noise Surface Treatment: Nano-coating self-leveling process effectively reduces operating noise for quieter performance.

CEEG SCB13 Dry-Type Transformer

3 High Safety & Reliability: Strong waterproof performance, excellent short-circuit withstand capability, high overload capacity, and stable electrical performance ensure safe and reliable operation.

CEEG SCB13 Dry-Type Transformer

4 Advanced Engineering Validation: Optimized through electric field, thermal field, and magnetic field simulation analysis, and among the earliest in China to pass KEMA E2, C2, and F1 type tests.

CEEG SCB13 Dry-Type Transformer

5 Dual-Mode Structural Design: Flexible dual-structure configuration to meet different customer requirements and application scenarios.

CEEG SCB13 Dry-Type Transformer

6 Smart Transformer Solution: Equipped with proprietary intelligent transformer system with big data cloud diagnostics for real-time online monitoring and predictive maintenance.

CEEG SCB13 Dry-Type Transformer

Product Features

High-Performance Insulation System

Advanced Hybrid Insulation: Adopts a cutting-edge hybrid insulation system covering Class A, B, and C thermal ratings, strategically engineered to neutralize internal temperature field differences.
Reliable Thermal Protection: Ensures safe, reliable, and long-term insulation performance by dynamically matching material thermal limits to localized heat distribution.

DuPont Nomex® Insulation Material

Globally Recognized Quality: Utilizes premium Nomex® material, universally trusted for its exceptional chemical stability and superior thermal resistance.
Safe & Environmentally Friendly: Provides inherent non-flammability and eco-friendly safety characteristics, ensuring zero toxic gas emissions under extreme conditions.

Multi-Dimensional Temperature Control Technology

Comprehensive Thermal Monitoring: Features an innovative 7-level temperature control system that provides precise, real-time monitoring of all critical operating temperatures.
Enhanced Dissipation & Stability: Significantly improves heat dissipation efficiency across varying load conditions, ensuring long-term, stable system performance.

Adaptability to High-Temperature & High-Load Conditions

High-Temperature & Heavy-Load Resilience: Specially engineered for continuous, long-term stable operation in extreme environments characterized by high thermal stress and heavy electrical loads.
Hydrogen Production Ready: Perfectly suited for highly demanding applications, providing the rugged reliability and precise power management required by hydrogen energy production equipment.

Robust and Durable Structure

Enhanced Short-Circuit Resilience: Features an optimized coil and core structure engineered with superior short-circuit withstand capability to safely absorb sudden electrical surges.
Continuous Heavy-Duty Operation: Built for rugged endurance, making it perfectly suited to handle long-term, continuous operating conditions without compromising system reliability.

Easy and Hassle-Free Maintenance

Simplified Daily Maintenance: Features an oil-free design that eliminates complex fluid testing and monitoring, significantly reducing daily inspection workload.
Minimized Downtime Risk: Enables faster, more straightforward fault point identification, streamlining troubleshooting to keep operational downtime to an absolute minimum.

Main Parameters

Rated Voltage	6 kV, 10 kV, 35 kV and other standard voltage levels
Capacity Range	50 kVA – 2500 kVA
Cooling Method	Natural air cooling (AN) / Forced air cooling (AF)
Insulation Class	Class F / Class H

Implementation Standard

Implementation Standard

GB/T 10228-2015 Technical Parameters and Requirements for Dry-Type Power Transformers

GB 1094.11-2007 Power Transformers Part 11: Dry-Type Transformers

IEC 60076-11 International Standard for Dry-Type Power Transformers

GB 1094.1-2013 Power Transformers Part 1: General Requirements

Technical Advantages

R&D Cloud Platform

R&D Cloud Platform

An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.

Simulation Analysis

Simulation Analysis

Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.

Smart Operation & Maintenance Platform

Smart Operation & Maintenance Platform

By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.
