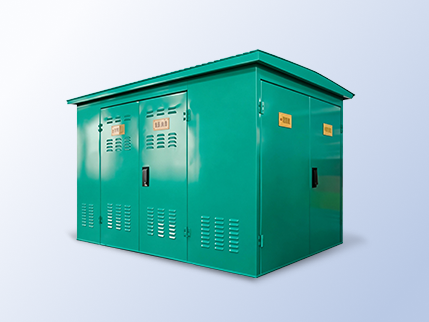

Integrates high-voltage switchgear, transformer, and low-voltage distribution equipment within a semi-buried enclosure, enhancing protection against water, freezing, and corrosion. It reduces surface land occupation while improving visual integration with the surrounding environment and ensuring convenient operation and maintenance.
Suitable for space-constrained downtown zones, focusing on freeing up surface land and optimizing underground installation.
Landscape-Sensitive Areas
Applicable to parks, squares, and public spaces, emphasizing visual harmony with surroundings and low-noise operation.
Urban Renovation Projects
Ideal for redevelopment and restricted construction areas, focusing on fast retrofitting, easy installation, and accessible maintenance channels.
Product Description
1
Structural and landscape integration: One-third or two-thirds of the enclosure is buried underground, reducing above-ground height and achieving better environmental integration.
2
Excellent underground structural performance: Steel frame combined with BFE composite enclosure provides waterproof, frost-proof, anti-seepage, and corrosion-resistant protection.
3
Flexible electrical configuration: High-voltage side supports ring network or radial (terminal) solutions, while low-voltage side can be configured as fixed or panel-type design.
4
Easy and efficient installation: Simple foundation requirements; installation can be completed with a leveling layer, significantly reducing civil work and construction time.
Product Features
Compact structure and innovative design
Overall compact layout with a unique and aesthetic appearance, optimizing space utilization.
High integration and reliable operation
Integrates high-voltage switchgear, transformer, and low-voltage equipment into a single compact system, ensuring safe and reliable operation.
High reliability and easy operation
User-friendly operation with stable performance and high reliability, suitable for various environmental conditions.
Aesthetic and convenient design
Harmonized appearance with the surrounding environment, simple installation, and high construction efficiency.
Small footprint and long service life
Occupies minimal space with high structural strength and durability, ensuring long-term stable operation.
Eco-friendly and easy installation
Environmentally friendly design requiring no special foundation; above-ground structure is metal, while underground structure is non-metallic for enhanced durability.
Main Parameters
Rated Capacity
100kVA ～ 2500kVA
Rated Voltage (HV Side)
6kV、10kV、35kV
Rated Voltage (LV Side)
0.4kV
Insulation Class
Class F / Class H
Cooling Method
Natural Air Cooling (AN) / Forced Air Cooling (AF)
Implementation Standard
GB/T 17467-2020High/Low Voltage Prefabricated Substation
GB 4208-2017Degree of Protection of Enclosures (IP Code)
GB/T 1094.1-2013Power Transformers – Part 1: General
DL/T 5137-2019Insulation Coordination for Electrical Equipment
IEC 62271-202International Standard for High/Low Voltage Prefabricated Substation
Technical Advantages
R&D Cloud Platform
An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.
Simulation Analysis
Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.
Smart Operation & Maintenance Platform
By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.
