CEEG YB Series European Type Prefabricated Substation

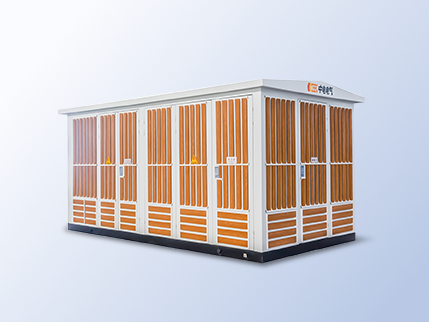

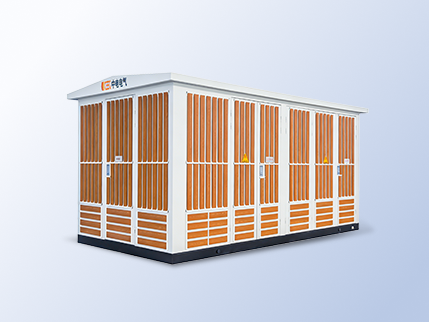

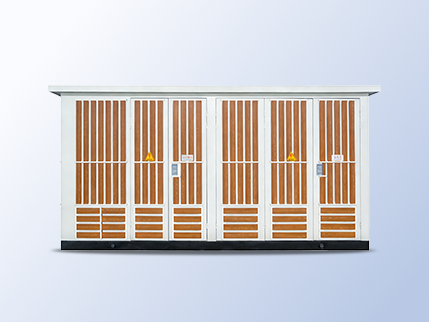

It adopts a welded steel frame structure with a high-protection enclosure, integrating high-voltage switchgear, transformer, and low-voltage distribution equipment into a single unit. The design is compact and enables fast installation. Optional intelligent monitoring systems can be configured to achieve real-time status visualization and system condition awareness.
Consult Now Consult Now 1899-414-7812
CEEG YB Series European Type Prefabricated Substation - Compact Combined Transformer According to IEC Standards
CEEG YB Series European Type Prefabricated Substation - Compact Combined Transformer According to IEC Standards
CEEG YB Series European Type Prefabricated Substation - Compact Combined Transformer According to IEC Standards
CEEG YB Series European Type Prefabricated Substation - Compact Combined Transformer According to IEC Standards
CEEG YB Series European Type Prefabricated Substation - Compact Combined Transformer According to IEC Standards
CEEG YB Series European Type Prefabricated Substation - Compact Combined Transformer According to IEC Standards
prev
next
Scope of application
Industrial Parks
Distribution substations for industrial parks, focusing on scalability and ease of maintenance to support flexible expansion and efficient operation.
Industrial Parks
Residential & Commercial Areas
For residential communities and commercial complexes, emphasizing fast installation, enhanced safety protection, and reliable power distribution performance.
Residential & Commercial Areas
Municipal Facilities
For public infrastructure and utility power distribution systems, focusing on high reliability and intelligent monitoring to ensure stable and efficient operation.
Municipal Facilities
Product Description
Product Description
1 Structural Design: Welded steel frame enclosure with anti-corrosion and weather-resistant performance, suitable for both indoor and outdoor power distribution systems.
CEEG YB Series European Type Prefabricated Substation
2 Factory Prefabrication: Primary and secondary systems are fully wired and tested in the factory, allowing on-site installation through simple positioning and connection for rapid commissioning.
CEEG YB Series European Type Prefabricated Substation
3 Environmental & Thermal Insulation: Roof equipped with thermal insulation layer, with optional side insulation to reduce condensation and minimize temperature variation effects.
CEEG YB Series European Type Prefabricated Substation
4 Smart Applications: High and low voltage sides are pre-configured with measurement, protection, and communication interfaces, supporting SCADA (“three remote” functions) and integration with energy management platforms.
CEEG YB Series European Type Prefabricated Substation
Product Features
CEEG YB Series European Type Prefabricated Substation

Product Composition

  • 3-in-1 Substation Architecture: Houses HV switchgear, power transformer, and LV switchgear in one system.
  • Isolated Functional Sections: Engineered with three fully integrated, isolated compartments to ensure safety.
  • Optimized Power Footprint: Maximizes space utilization while streamlining the internal electrical layout.
CEEG YB Series European Type Prefabricated Substation

Product Advantages

  • High system integration, small footprint, low investment cost, and convenient installation and maintenance.
CEEG YB Series European Type Prefabricated Substation

Appearance Features

  • Aesthetic design with emphasis on green and environmentally friendly concepts.
CEEG YB Series European Type Prefabricated Substation

Frame Design

  • Welded steel structure with high mechanical strength and excellent weather resistance for long-term outdoor operation.
CEEG YB Series European Type Prefabricated Substation

Anti-corrosion Performance

  • Strong corrosion resistance with multiple material and color options available for customized requirements.
CEEG YB Series European Type Prefabricated Substation

Internal Structure

  • Available in “grid-type” and “character-type” configurations, with optional corridor and non-corridor designs to meet different application scenarios.
Main Parameters
Rated Voltage 6kV、10kV、35kV
Rated Current 630A、1250A
Rated Short-Circuit Breaking Current 20kA、25kA、31.5kA
Rated Frequency 50Hz
Capacity Range 50kVA～2500kVA
Implementation Standard
Implementation Standard
GB/T 17467 High/Low Voltage Prefabricated Substation
IEC 62271-202 High/Low Voltage Prefabricated Substation
GB 7251 Low Voltage Switchgear and Controlgear Assemblies
GB 1094 Power Transformer
JB/T 10088 Sound Level of 6–220kV Power Transformers
Technical Advantages
R&D Cloud Platform
R&D Cloud Platform
An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.
Simulation Analysis
Simulation Analysis
Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.
Smart Operation & Maintenance Platform
Smart Operation & Maintenance Platform
By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.
