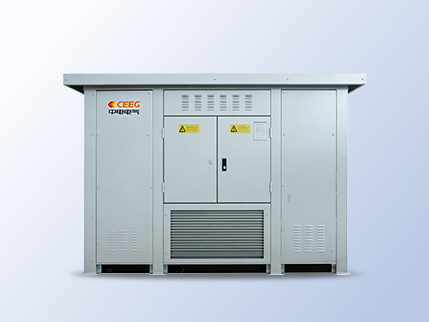

CEEG YBF Series Wind & Solar Prefabricated Substation

YBF Series Wind & Solar Prefabricated Substation integrates high-voltage switchgear, step-up transformer, and low-voltage distribution equipment into a compact enclosure for wind and photovoltaic power plants. It enables voltage stepping from 0.315–1 kV to 10/35 kV for grid connection. The design is compact, highly weather-resistant, and suitable for rapid outdoor deployment in harsh environments.

Consult Now

CEEG YBF Series Wind & Solar Prefabricated Substation - Compact Transformer for Renewable Energy Plants

CEEG YBF Series Wind & Solar Prefabricated Substation - Compact Transformer for Renewable Energy Plants

CEEG YBF Series Wind & Solar Prefabricated Substation - Compact Transformer for Renewable Energy Plants

CEEG YBF Series Wind & Solar Prefabricated Substation - Compact Transformer for Renewable Energy Plants

CEEG YBF Series Wind & Solar Prefabricated Substation - Compact Transformer for Renewable Energy Plants

CEEG YBF Series Wind & Solar Prefabricated Substation - Compact Transformer for Renewable Energy Plants

Scope of application

Centralized PV Power Plants

Step-up and grid connection at collection substations, focusing on outdoor weather resistance and rapid commissioning.

Centralized PV Power Plants

Distributed Power Plants

Collection substations for industrial park distributed generation, emphasizing small footprint and construction efficiency.

Distributed Power Plants

Onshore Wind Farms

Collection systems at turbine bases, focusing on heat dissipation and environmental adaptability.

Onshore Wind Farms

Product Description

Product Description

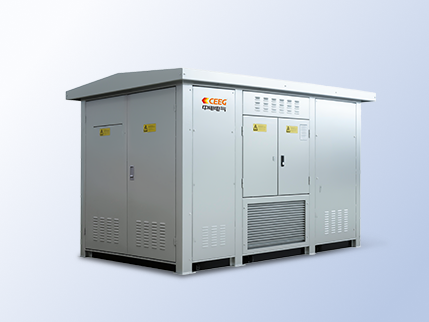

1 Advanced electrostatic spraying technology: The enclosure adopts an electrostatic coating process to enhance corrosion resistance and effectively prevent rusting and color fading.

CEEG YBF Series Wind & Solar Prefabricated Substation

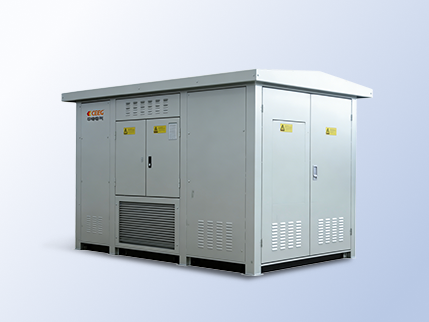

2 Intelligent control system: Equipped with an intelligent control system supporting both local operation and remote monitoring, with SCADA “four remote” functions (telemetry, remote signaling, remote control, and remote adjustment).

CEEG YBF Series Wind & Solar Prefabricated Substation

3 Natural ventilation design: Sufficient natural ventilation is provided to ensure normal heat dissipation of the equipment.

CEEG YBF Series Wind & Solar Prefabricated Substation

4 Forced ventilation system: When ambient temperature approaches 40°C, the system automatically activates forced ventilation to maintain stable operating conditions.

CEEG YBF Series Wind & Solar Prefabricated Substation

Product Features

Environmental adaptability

All-Weather Adaptation: Engineered with a highly adaptable enclosure to withstand various environmental conditions.
Renewable Grid Aesthetics: Features an appearance design tailored to integrate seamlessly with wind power or photovoltaic applications.

Excellent sealing performance

4-Season Weather Shield: Built to block sand, salt mist, rain, and snow.
Extreme Environment Resilient: Engineered to ensure stable operation in harsh climates.
All-Weather Security: Delivers uninterrupted performance regardless of external conditions.

Durable enclosure construction

Premium Material Integrity: Manufactured from high-strength and weather-resistant materials.
Long-Term Durability: Engineered to withstand environmental wear, ensuring long-term durability.
Reliable Substation Operation: Guarantees uninterrupted performance for stable and secure power distribution.

Energy efficiency and environmental friendliness

Eco-Friendly Compliance: Designed with strict energy-saving concepts in compliance with environmental standards.
Carbon Footprint Reduction: Lowers operational carbon emissions by actively reducing energy consumption.
Sustainable Development: Promotes green power transformation to support global sustainable development goals.

Fast delivery and installation

Minimal Foundation Work: Features a modular prefabricated design that requires minimal on-site foundation work.
Plug-and-Play Delivery: Enables direct installation and commissioning immediately upon delivery.
Accelerated Project Timeline: Eliminates tedious on-site construction to significantly shorten construction and commissioning time.

Intelligent operation and maintenance

Future-Ready Interfaces: Equipped with reserved monitoring and communication interfaces for seamless backend integration.
Real-Time Data & Alarms: Enables continuous data acquisition and automated alarm linkage.
Remote Inspection Capabilities: Supports remote digital inspection to drastically reduce on-site maintenance workload.

Main Parameters

Input Voltage	0.6-0.69kV
Output Voltage	10 kV or 35 kV (Grid Connection Output Voltage)
Operating Ambient Temperature	-30°C to +40°C
Enclosure Protection Degree (IP Code)	IP54 (Dustproof and Waterproof, Suitable for Harsh Environments)
Control Mode	Intelligent Control System

Implementation Standard

Implementation Standard

GB/T 11022 General Rules for Standardization Management of Power Equipment

GB/T 2900 Terminology for Power Equipment

GB/T 50052 Design Specifications for Electrical Installations

IEC 60076 International Standards for Power Transformers

IEC 61439 Assemblies of Low-Voltage Switchgear and Controlgear

Technical Advantages

R&D Cloud Platform

R&D Cloud Platform

An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.

Simulation Analysis

Simulation Analysis

Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.

Smart Operation & Maintenance Platform

Smart Operation & Maintenance Platform

By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.
