CEEG ZGS Series American Type Pad Mounted Substation
American fully sealed high-integration solution integrating high-voltage load break switch / fuse protection, transformer, and low-voltage distribution system into a single compact unit. It features strong heat dissipation and overload capacity, flexible configuration options, and is well-suited for ring network and radial distribution power systems.
Consult Now Consult Now 1899-414-7812

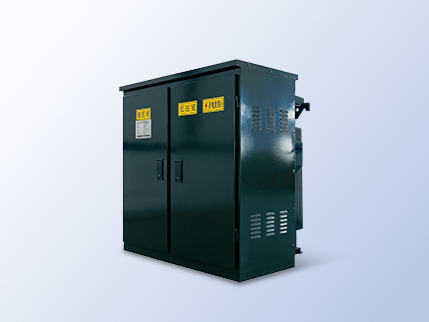

CEEG ZGS Series American Type Pad Mounted Substation - High-Voltage Step-down Transformer for US Standards

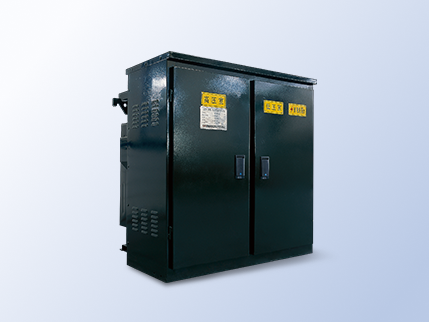

CEEG ZGS Series American Type Pad Mounted Substation - High-Voltage Step-down Transformer for US Standards

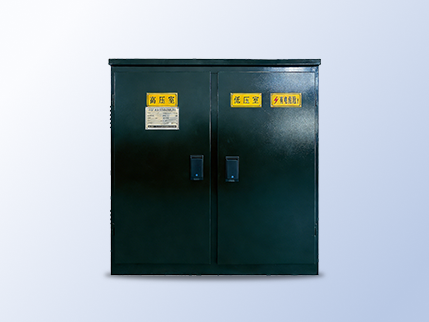

CEEG ZGS Series American Type Pad Mounted Substation - High-Voltage Step-down Transformer for US Standards
CEEG ZGS Series American Type Pad Mounted Substation - High-Voltage Step-down Transformer for US Standards
CEEG ZGS Series American Type Pad Mounted Substation - High-Voltage Step-down Transformer for US Standards
CEEG ZGS Series American Type Pad Mounted Substation - High-Voltage Step-down Transformer for US Standards
prev
next
Scope of application
Ring Network Power Supply
Suitable for urban ring network and radial distribution systems, focusing on high integration and small footprint.
Ring Network Power Supply
Commercial & Industrial Applications
Dedicated substations for end users, emphasizing flexible configuration and strong overload capacity.
Commercial & Industrial Applications
Outdoor Substations
Distribution branch substations for outdoor applications, focusing on sealing performance and environmental adaptability.
Outdoor Substations
Product Description
Product Description
1 Compact structure & easy installation: Small footprint with a compact design, short construction cycle, and easy installation and relocation.
CEEG ZGS Series American Type Pad Mounted Substation
2 Fully sealed protection: Fully enclosed housing with dustproof and moisture-proof performance, suitable for harsh and complex environments.
CEEG ZGS Series American Type Pad Mounted Substation
3 Efficient cooling & overload capability: Guided ventilation design improves heat dissipation efficiency and enhances short-term overload performance.
CEEG ZGS Series American Type Pad Mounted Substation
4 Flexible configuration: Available in dry-type, oil-immersed, and amorphous alloy options, supporting both radial and ring network solutions with easy system expansion.
CEEG ZGS Series American Type Pad Mounted Substation
5 Intelligent monitoring: Supports CT/PT and protection communication interfaces with smart meters for remote monitoring, control, and data acquisition.
CEEG ZGS Series American Type Pad Mounted Substation
6 Data-driven operation & maintenance: Optional display and data platform enables centralized data collection and analysis, supporting proactive maintenance and energy management.
CEEG ZGS Series American Type Pad Mounted Substation
Product Features
CEEG ZGS Series American Type Pad Mounted Substation

Modular licensed manufacturing

  • Schneider-Licensed Technology: Produced under official Schneider tech licensing to guarantee premium global engineering.
  • Modular Manufacturing: Utilizes advanced modular assembly to ensure flawless product quality and consistency.
  • Certified Reliability: Built and rigorously audited to deliver long-term operational reliability.
CEEG ZGS Series American Type Pad Mounted Substation

Human-oriented design

  • User-Friendly Architecture: Focused entirely on operational convenience to simplify daily management.
  • Instant Documentation Access: Provides seamless and rapid access to critical technical documentation.
  • Streamlined Maintenance: Empowers field engineers with real-time, actionable maintenance information.
CEEG ZGS Series American Type Pad Mounted Substation

Fully sealed structure

  • Fully Enclosed Architecture: Safe, fully enclosed design to isolate all external electrical risks.
  • Rational Structural Design: Engineered with optimized internal layouts to guarantee high operational stability.
  • Maximum System Reliability: Rigidly built and tested to ensure uninterrupted, bulletproof performance.
CEEG ZGS Series American Type Pad Mounted Substation

Efficient thermal control system

  • Intelligent Ventilation: Features advanced cooling systems to deliver high-efficiency thermal management.
  • Adjustable Thermostat: Supports flexible temperature control settings to prevent critical component overheating.
  • All-Weather Adaptation: Engineered to maintain stable operation across diverse environmental conditions.
CEEG ZGS Series American Type Pad Mounted Substation

Compact structure

  • Ultra-Compact Architecture: Engineered to occupy approx. 1/3 the footprint of an equivalent European-type substation.
  • Space-Saving Deployment: Minimizes land requirements to drastically reduce site installation space.
  • Capex Efficiency: Lowers overall civil engineering and infrastructure costs through high-density spatial design.
CEEG ZGS Series American Type Pad Mounted Substation

Strong overload capability

  • Superior Heat Dissipation: Engineered with high-efficiency cooling paths to deliver excellent thermal performance.
  • Heavy Overload Capacity: Leverages advanced thermal margins to enable strong short-term overload capacity.
  • High Operational Stability: Optimizes internal temperature fields to ensure efficient and reliable operation.
Main Parameters
Rated Capacity 50kVA～2500kVA
Rated Voltage 6kV、10kV、20kV、35kV
Rated Current (HV Side) 100A～630A
Rated Current (LV Side) 100A～4000A
Rated Frequency 50Hz/60Hz
Implementation Standard
Implementation Standard
GB/T 17467 High/Low Voltage Prefabricated Substation
GB 1094 Power Transformer
GB/T 11022 General Technical Requirements for High Voltage Switchgear and Controlgear
GB/T 7251 Low Voltage Switchgear and Controlgear Assemblies
IEC 62271-202 International Standard for High/Low Voltage Prefabricated Substation
Technical Advantages
R&D Cloud Platform
R&D Cloud Platform
An integrated digital platform combining electromagnetic optimization design, parametric modeling, performance analysis, structural optimization, and automatic drawing generation. It enables transformer design resource sharing and efficient data management, including search, modification, and version control.
Simulation Analysis
Simulation Analysis
Comprehensive multi-physics simulation covering fluid flow, thermal field, electric field, leakage magnetic field, transient processes, and short-circuit forces. Each transformer series is optimized through thermal and flow analysis to accurately control winding temperature rise and hotspot distribution, ensuring reliable and stable performance.
Smart Operation & Maintenance Platform
Smart Operation & Maintenance Platform
By collecting key data such as temperature, current, voltage, vibration, and grid harmonics, the system enables real-time power quality analysis and fault alarms. It also supports mobile access for remote monitoring and intelligent O&M management.
