Modular Intelligent Prefabricated Substation

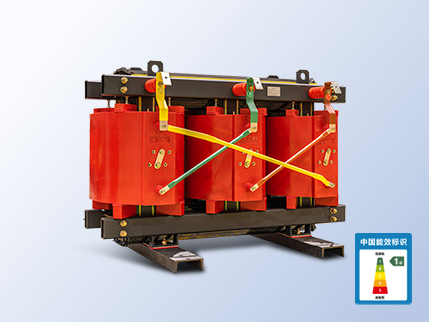

SCB Series Dry-Type Power Transformers have been successfully applied in Beijing Olympic Venues, operating stably and efficiently at every moment. From the glorious competition venues to the behind-the-scenes support, with excellent quality, we inject inexhaustible power into the Olympic dream and let the world witness the extraordinary strength of Made in China!

Consult Now

180-1334-5718

Scope of application

Public places

Public places with high requirements for fire safety and environmental protection, such as high-rise buildings, hospitals, schools and commercial centers.

Industrial enterprises

Environments requiring safe and reliable power supply, such as chemical plants and metallurgical plants.

Metro stations and airports

Occasions with high requirements for the safety and stability of electrical equipment.

Product Description

1 Adopts high-quality high-permeability silicon steel with full-step-lap joint and multi-stage stepping technology, featuring low no-load loss.

2 Equipped with nano-paint self-leveling surface treatment, ensuring low noise.

3 Excellent waterproof performance, strong short-circuit withstand capability, high overload capacity, superior electrical performance, safe and reliable.

4 Designed with electric field, temperature field and magnetic field simulation analysis; among the earliest in China to pass KEMA tests for E2, C2 and F1.

5 Dual-mode structure is available to meet demands of different customers.

6 Adopts unique intelligent transformer solutions with real-time online technologies such as big data cloud diagnosis.

Product Features

Insulation Material

SCB series dry-type transformers feature excellent fire resistance. They are oil-free, eliminating the risk of environmental pollution or fire caused by oil leakage. The transformers boast strong resistance to short-circuit currents and overvoltages, ensuring stable performance even in harsh environments.

Safe and Reliable

Excellent heat dissipation performance

Environmental Performance

Mechanical Properties and Durability

Easy operation and maintenance

Technical Advantages

R&D Cloud Platform

It integrates multiple functions of transformers, including electromagnetic optimization design, parametric drawing, performance analysis, structural optimization, and automatic plotting. It also enables the sharing of transformer design resources, as well as the query, modification and version control of various data and information.

Simulation Analysis

Flow field, temperature field, electric field, leakage magnetic field, wave process, short-circuit force.The R&D and design of each product series are carried out through simulation analysis of the flow field and temperature field to determine the average temperature rise and hot-spot temperature of the windings, so as to ensure product performance.

Intelligent Operation & Maintenance Platform

By collecting key data of transformers such as temperature, current, voltage, vibration and power grid harmonics, it can realize online power quality analysis and fault alarm, and can be installed on mobile terminals.

Rated Voltage	Various standard voltage classes such as 6kV, 10kV and 35kV.
Cooling Method	Natural Air Cooling (AN) and Forced Air Cooling (AF)
Capacity Range	From 50kVA to 2500kVA
Insulation Class	Class F or Class H Ensuring excellent insulation performance even in high-temperature environments.
